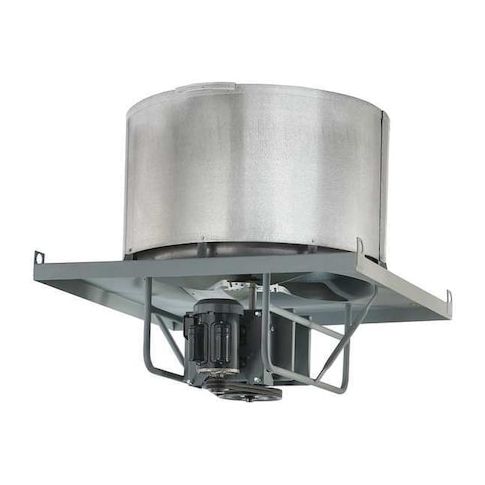

Axial Upblast Roof Exhaust Fan: Belt Drive, 48 in Blade, 33, 160 cfm, TEFC, 5 hp MPN:BRV-848-5-3-TEFC
Free Shipping
In Stock
This axial upblast roof exhaust fan is a high-performance ventilation solution for commercial and industrial applications. Designed for exhausting clean air through a roof curb installation, it provides up to 33,160 cfm of airflow capacity at 0.000 in static pressure. The belt-driven axial propeller is powered by a 5 hp electric motor, ensuring efficient operation and minimal noise levels. Ideal for use in warehouses, factories, and other large buildings, this fan helps maintain a healthy and safe indoor environment while reducing the risk of moisture-related issues and improving air quality. Its durable steel construction and galvanized finish ensure long-lasting performance.
Top product features:
- Exhausts clean air through a roof curb installation
- Powered by a 5 hp electric motor rated for operation on 230/460V AC, three-phase power
- Has a maximum static pressure rating of 1/2 in wc and maximum inlet air temperature up to 104°F
Top product applications:
- Commercial kitchens to provide ventilation for cooking areas
- Industrial facilities to control temperature and humidity
- High-rise buildings to exhaust air from roof-mounted units
This item is an axial upblast roof exhaust fan supplied as an assembled roof-mounted ventilation unit. It uses a belt-driven axial propeller powered by a 5 hp electric motor rated for operation on 230/460V AC, three-phase power. The fan is constructed with a steel housing and propeller, includes a drive package and motor mounted out of the airstream, and is specified for exhausting clean air through a roof curb installation.
Key Features:
- Fan Type: Axial upblast roof exhaust fan with belt drive.
- Airflow Capacity: Exhaust airflow is specified up to 33,160 cfm at 0.000 in static pressure, with performance values specified across static pressure ranges up to 0.500 in wc.
- Motor Specifications: 5 hp motor with a specified motor speed of 800 RPM on 230/460V AC, three-phase, 60 Hz power.
- Construction: Steel housing and steel propeller with galvanized finish.
- Mounting Configuration: Roof-mounted unit with a square base measuring 63 in x 63 in.
- Sound Level: Sound ratings specified at 45 sones at 0.125 and 0.250 in static pressure measured at 5 ft.
- Included Components: Is supplied assembled with a motor, belt drive package, and butterfly damper section.
- Specified operating limits: Maximum static pressure rating of 1/2 in wc and maximum inlet air temperature up to 104°F.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 32 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 69.00
- Package Width: 69.00
- Package Height: 63.00
- Package Weight: 570.00
- Restricted States: CA
