Altronix AL175ULB Proprietary Power Supply - Wall Mount - 24 V AC Input - 12 V DC, 24 V DC Output - 1 +12V Rails MPN:AL175ULB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
312-120052
Altronix AL175ULB Proprietary Power Supply - Wall Mount - 24 V AC Input - 12 V DC, 24 V DC Output - 1 +12V Rails MPN:AL175ULB

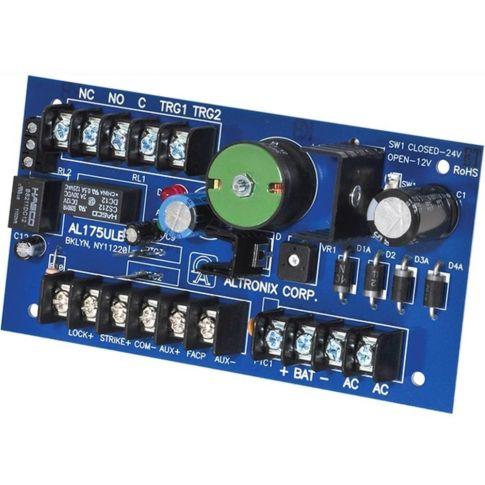

The Altronix AL175ULB is a reliable and versatile power supply designed for use in fire alarm control panels and access control systems. Its proprietary power supply and charger board provide a stable output of 12VDC or 24VDC at 1.75A, ensuring seamless operation of critical systems. The UL recognized device features latching/non-latching fire alarm disconnect and short circuit protection, providing an added layer of safety and reliability. With its compact design and RoHS compliance, the AL175ULB is an ideal solution for a wide range of applications, including commercial and industrial settings, where reliable power is essential.
Top product features:
- UL Recognized
- Latching/non-latching fire alarm disconnect
- 12VDC or 24VDC @ 1.75A
Top product applications:
- Fire Alarm Control Panel
- Access Control System
- Power Supply/Charger Board
UL Recognized. 12VDC or 24VDC @ 1.75A. Latching/non-latching fire alarm disconnect. 28VAC 56VA transformer required. Power Supply/Charger Board.
Features
- Brand Name: Altronix
- Compatible With:
- Fire Alarm Control Panel
- Access Control System
- Depth: 5-8/10 in.
- Dimensions: 1-1/2 in. X 3-1/10 in. X 5-8/10 in.
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Height: 1-1/2 in.
- Manufacturer: ALTRONIX CORPORATION
- Model: AL175ULB
- Output Voltage Detail: 12 V DC @ 1.75 A; 24 V DC @ 1.75 A
- Power Supply Weight: 13.4 lb
- Quantity: 1
- Short Circuit Protection: Yes
- Total Quantity: 1 Power Supplies
- Width: 3-1/10 in.
Additional Information
- Country of Origin: XX
- UNSPSC Code: 39121004
- UNSPSC Commodity: Power supply units
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 3.40
- Package Width: 1.75
- Package Height: 5.90
- Package Weight: 1.90
Product info last updated on February 14, 2026 8:20pm UTC
Category: Computer Cards and Components
