Aignep USA 3/2 Closed 1/2 NPTF Single Solenoid Valve Pilot Spr Return 24V DC/3W Coil LED Conn. 01VS03NC05N0202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-98461B23

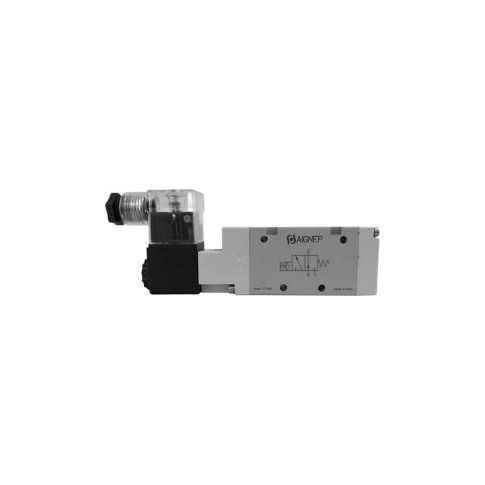

Aignep USA 3/2 Closed 1/2 NPTF Single Solenoid Valve Pilot Spr Return 24V DC/3W Coil LED Conn.
The Aignep USA 3/2 Closed 1/2 NPTF Single Solenoid Valve is a high-quality control solution for pneumatic systems. Ideal for use in industrial applications, this valve provides precise control over pneumatic cylinders and components. With a durable design and reliable operation, it can withstand pressures up to 145 psi and temperatures between 14-140°F. The valve's compact size and LED connection make it easy to integrate into various systems. Suitable for use in a range of industries, including manufacturing, automation, and robotics, this valve offers a reliable and efficient solution for controlling pneumatic operations.
Top product features:
- The product operates with a 24V DC/3W coil.
- The valve is designed to operate up to 145 psi working pressure.
- The seals are made of durable NBR and allow the valve to operate between 14 140 degrees F.
Top product applications:
- Automotive industry for air-powered cylinder control
- Industrial manufacturing for pneumatic cylinder operation
- Medical equipment for precise control of pneumatic systems
Aignep usa's 01vs series pneumatic solenoid pilot valves provide a high quality control solution for your pneumatic cylinders components and operations. Offered in all common voltages from 12vdc up through 220vac these valves are offered in convenient combo packages that include the valve solenoid and connector. Actions available are 3/2 5/2 and 5/3 the latter offered in closed pressure and open centers. Port sizes are offered in 1/8 1/4 and 1/2 inch npt and bspp threads. Flow rates are 740 nl/min for 1/8" ports 1200 nl/min for 1/4" ports and 5000 nl/min for 1/2" ports. All valves operate up to 145 psi working pressure with 14.5 psi of baseline pressure required for bistable valves and 29 psi of baseline pressure required to actuate monostable valves. The seals are made of durable nbr and allow the valves to operate between 14 - 140 degrees f. The body is comprised of anodized and painted aluminum where the spool is chemical nickel plated steel.
Additional Information
- UNSPSC: 40141609
- Brand: Alpha Technologies Llc
- Package Quantity: 1
- Country of Origin: IT
- FOB Origin: TN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 7.09
- Package Width: 2.36
- Package Height: 1.18
- Package Weight: 1.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Valves
