Aignep USA 3/2 Open Single Solenoid Valve Pilot/Spr Return G 1/4 12V DC/3W Coil Blk Connection 01VS03NO030101
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-98454B23

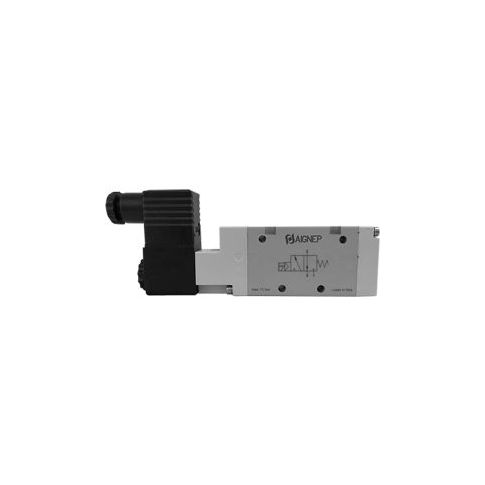

Aignep USA 3/2 Open Single Solenoid Valve Pilot/Spr Return G 1/4 12V DC/3W Coil Blk Connection
This 3/2 open single solenoid valve pilot/spr return is a high-quality control solution for pneumatic systems. It offers reliable operation up to 145 psi and is suitable for applications in a wide range of temperatures. The valve is designed for use in pneumatic cylinders, components, and operations, providing precise control and efficient flow rates. With its durable seals and chemical nickel-plated steel spool, it ensures long-lasting performance. Ideal for use in manufacturing, automation, and industrial settings, this valve is a reliable and efficient choice for pneumatic systems. Its compact design and easy installation make it a convenient solution.
Top product features:
- 3/2 Open Single Solenoid Valve Pilot/Spr Return
- Operates up to 145 psi working pressure
- Seals are made of durable NBR and allow the valves to operate between 14 140 degrees Fahrenheit
Top product applications:
- Industrial Automation
- Pneumatic Cylinder Control
- Automotive Brake System
Aignep usa's 01vs series pneumatic solenoid pilot valves provide a high quality control solution for your pneumatic cylinders components and operations. Offered in all common voltages from 12vdc up through 220vac these valves are offered in convenient combo packages that include the valve solenoid and connector. Actions available are 3/2 5/2 and 5/3 the latter offered in closed pressure and open centers. Port sizes are offered in 1/8 1/4 and 1/2 inch npt and bspp threads. Flow rates are 740 nl/min for 1/8" ports 1200 nl/min for 1/4" ports and 5000 nl/min for 1/2" ports. All valves operate up to 145 psi working pressure with 14.5 psi of baseline pressure required for bistable valves and 29 psi of baseline pressure required to actuate monostable valves. The seals are made of durable nbr and allow the valves to operate between 14 - 140 degrees f. The body is comprised of anodized and painted aluminum where the spool is chemical nickel plated steel.
Additional Information
- UNSPSC: 40141609
- Brand: Alpha Technologies Llc
- Package Quantity: 1
- Country of Origin: IT
- FOB Origin: TN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.57
- Package Width: 1.57
- Package Height: 0.87
- Package Weight: 0.30
Product info last updated on August 16, 2025 7:30am UTC
Category: Valves
