Allpoints 421813 Low Pressure Switch 421813

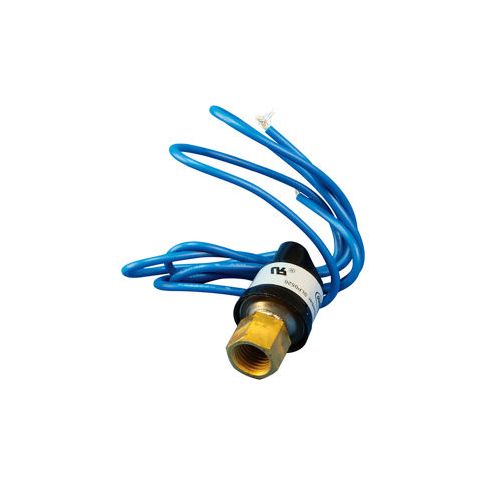

Allpoints 421813 Low Pressure Switch
The Allpoints 421813 Low Pressure Switch is a reliable and versatile solution for a variety of applications. This automatic reset switch can be used to monitor and control pressure levels in systems, ensuring optimal performance and preventing damage from low or high pressure conditions. Its high and low pressure settings can be adjusted to suit specific needs, and its condenser fan cycling feature helps to maintain efficient cooling. Suitable for use in industrial, commercial, and residential settings, this switch is ideal for applications such as HVAC systems, compressors, and pumps, providing reliable and consistent pressure control.
Top product features:
- Automatic reset high low & condenser fan cycling pressure switches.
- Snap acting SS hermetically sealed sensor.
- Small size and light weight for direct mounting.
Top product applications:
- Air Compressor Monitoring
- Pneumatic System Pressure Control
- Condenser Fan Cycling
Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" automatic reset high low & condenser fan cycling pressure switches. Low pressure open 5 psi close 20 psi +/- 15 psi high pressure spst open on pressure rise low pressure spst open on pressure fall condenser fan cycling spst open on pressure fall. 1/4" female sae connection snap acting ss hermetically sealed sensor (shp slp & sfc) small size and light weight for direct mounting excellent set point repeatability/stability pressure range 0 to 650 psi burst pressure 5000 psi life rated load 100000 cycles rated voltage 50/60 hz. 24/120/240 v (6 rla 36 lra) temperatures ambient 20°f to 176°f (-30°c to 80°c) fluid 60°f to 250°f (-50°c to 120°c)
Additional Information
- UNSPSC: 48100000
- Brand: Allpoints
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on May 19, 2025 3:06am UTC
Category: Restaurant Replacement Parts
