24" Jet Fan MPN:9518-24
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
505-037-9518-24

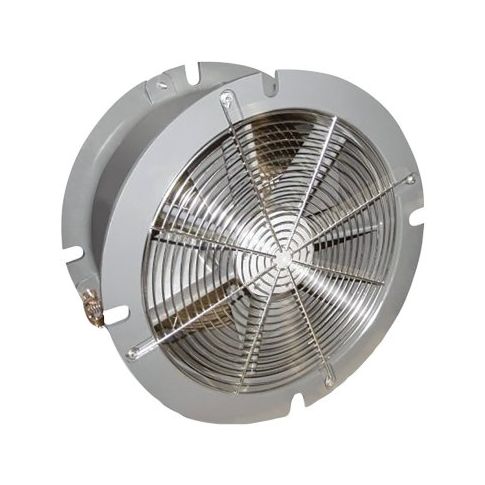

24" Jet Fan MPN:9518-24
Pneumatic Jet Fan, 24 in dia Inner, 4 Blades, 16000 ft/min, 76 to 338 SCFM, 40 to 100 psig
Additional Information
- UPC Code: 741851951942
- Country of Origin: UNITED STATES
- Special Order Item: Yes
- State Restricted: NO
- Minimum Order Quantity: 1
- Minimum Order UOM: EA
- Cost UOM: EA
- UOM Conversion: 1 EA = 1 EA
- Item Weight: 146
- Item Length: 33
- Item Width: 33
- Item Height: 13
- Item Cube: 14157
Attributes
- Air Consumption [Max]: 338 SCFM
- Air Consumption [Min]: 76 SCFM
- Blade Material: Heavy-Duty Aluminum
- Color: Gray
- Dia. [Max]: 32.75 in
- Dia. [Min]: 24 in
- Fan Type: Blower; Exhaust
- Height [Nom]: 11.75 in
- Inlet Pressure [Max]: 100 psig
- Inlet Pressure [Min]: 40 psig
- Inlet Size: 1 in
- Inlet Type: NPT
- Material: Aluminum; Stainless Steel Fan Shaft
- Mounting: Side-Mounted Inlet Connector
- No. of Blades: 4
- Power Source: Pneumatic
- Speed [Max]: 16000 ft/min
Features
- Heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting
- Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20-inch model) or 16,000 CFM (24-inch model) at 100 psig quickly and efficiently
- Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan
- A spark-resistant fan with recessed handles for easy portability or it can be rolled
Product info last updated on June 5, 2026 1:46pm UTC
