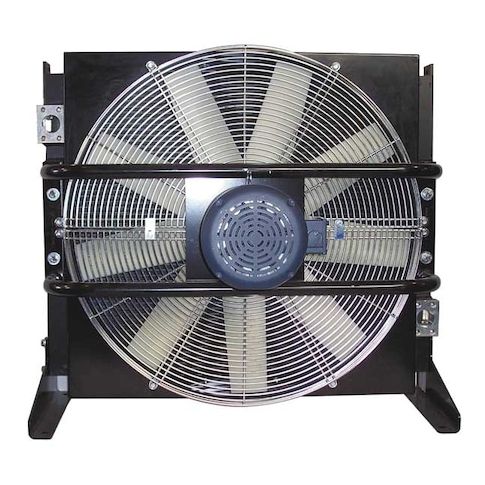

Oil Cooler, AC, 20-200 GPM, 230/460 V, 5 HP MPN:A130-3
The Akg Oil Cooler is a high-performance solution for heavy-duty oil cooling applications. Designed to handle flows of 20-200 GPM, this forced air oil cooler is ideal for industrial settings where heat removal is critical. With a 130 HP heat removal capacity and 377 psi max pressure, it's perfect for use in manufacturing, mining, and construction equipment. The compact design (37.56 x 40.94 x 25.1 in) makes it easy to install in tight spaces, while the 5 HP motor ensures efficient operation. Suitable for a variety of applications, including hydraulic systems, gearboxes, and engines, this oil cooler provides reliable performance and long-lasting durability.
Top product features:
- Forced Air Oil Cooler design to remove heat from high-pressure hydraulic systems
- Capable of handling a maximum flow rate of 200 gpm
- Removes heat from 130 horsepower systems using a 3-phase, 230/460V AC motor
Top product applications:
- Industrial machinery
- Automotive manufacturing
- Heavy equipment operations
The AKG A130-3 forced air oil cooler is designed for hydraulic systems requiring dependable heat dissipation across a 20 to 200 gpm flow range. This unit removes up to 130 hp of heat and features a 5 hp AC motor with a totally enclosed fan-cooled design for reliable operation in demanding industrial environments. Built with an aluminum core and finished with a black painted, powder-coated coating, it also includes mounting feet, mounting bracket, and mounting hardware for installation.
Key Features:
- - Forced air oil cooler with 5 hp AC motor for hydraulic oil cooling applications.
- - Flow range of 20 to 200 gpm for compatibility with a wide range of hydraulic systems.
- - Removes up to 130 hp of heat to help maintain system temperature and performance.
- - Aluminum construction with black painted, powder-coated finish for durability and corrosion resistance.
- - One fan with PPG fan blade for efficient airflow.
- - Steel fan guard, shroud, and mounting bracket for added protection and support.
- - 2 in SAE 4 bolt flange female inlet and outlet ports for system connection.
- - Rated for maximum pressure of 377 psi.
- - Maximum operating temperature of 250 degrees F.
- - Compatible with hydraulic fluids up to ISO 320.
- - Totally enclosed fan-cooled motor, 3 phase, 230/460V AC.
- - Full load amps: 13.2/6.6 A.
- - Includes mounting feet, mounting bracket, and mounting hardware.
- - Dimensions: 40.94 in W x 37.56 in H x 25.1 in D.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 40.00
- Package Height: 43.10
- Package Weight: 414.00
