Multifunction Time Delay Relay, Square, 5 Functions 12V DC, SPDT MPN:MC7003631H
Multifunction Time Delay Relay, Square, 5 Functions 12V DC, SPDT

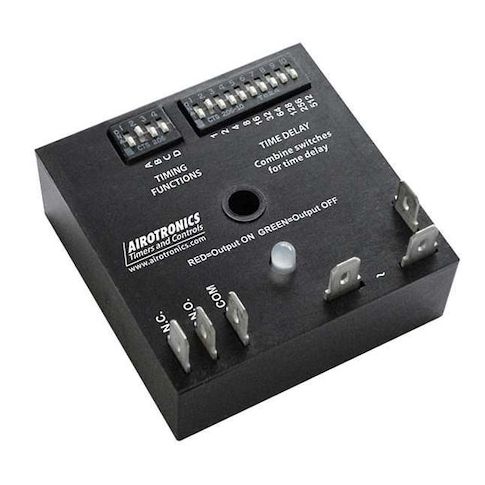

The Airotronics Multifunction Time Delay Relay is a versatile and reliable solution for a wide range of applications. This compact, square-shaped relay features 5 delay functions, including delay on break, delay on make, interval, resettable single shot/watchdog, and single shot, allowing for precise control over timing sequences. With a minimum time setting of 0.1 seconds and a maximum time setting of 1,023 minutes, this relay is suitable for applications such as industrial automation, medical equipment, and security systems. Its 10A current rating and SPDT contact form make it a reliable choice for demanding applications.
Top product features:
- Adjustable delay functions allow for customization of timing sequences
- SPDT contact form enables switching between two different circuits
- Quick-Connect terminals simplify electrical connections
Top product applications:
- Machine Automation
- Industrial Control Panels
- Process Control Systems
Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Contact Rating (DC) 10 A @ 12V, Current Rating 10 A, Number of Delay Functions 5, Delay Function Delay On Break, Delay On Make, Interval, Resettable Single Shot/Watchdog, Single Shot, Electrical Connection Quick-Connect Terminal, Input Voltage 12V DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1,023 min, Number of Pins 6, Mounting Style Surface
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.90
- Package Height: 1.50
- Package Weight: 0.25
