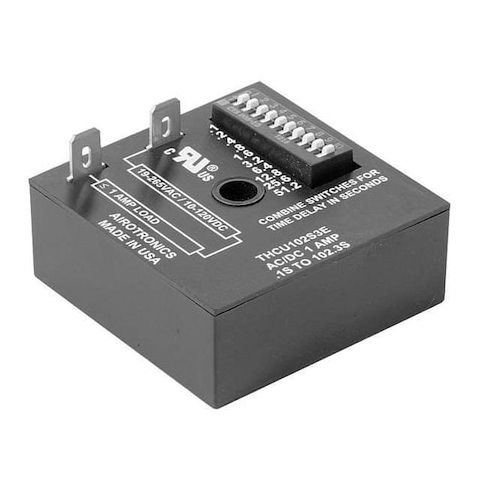

Single Function Encapsulated Timing Relay, Square, On Delay, 1 Functions 120V AC, SPST-NO MPN:THCU1023E
Single Function Encapsulated Timing Relay, Square, On Delay, 1 Functions 120V AC, SPST-NO
This single function encapsulated timing relay is a versatile solution for various applications, including industrial automation, building management, and security systems. With a compact square design and adjustable delay function, it can be easily integrated into existing systems to provide precise timing control. The relay features a high current rating of 1A and a wide voltage range, making it suitable for use with a variety of devices. Its adjustable delay function allows for customization of timing sequences, making it an ideal choice for applications requiring precise timing control, such as lighting systems and security protocols.
Top product features:
- On Delay Functionality
- Adjustable Delay Time with Minimum Setting of 1 Second and Maximum Setting of 1,023 Seconds
- SPST-NO Contact Form for Single Pole Single Throw Operation
Top product applications:
- Automotive applications, such as delayed start timing for accessories like headlights or wipers
- Industrial control systems, where a single function timing relay is required for a specific process or machine
- Home automation systems, where a timing relay is needed to control lighting or appliances with a delayed start or shutdown feature
Single Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 120V AC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 19 to 265V, Contact Rating (DC) 1 A @ 10 to 120V, Current Rating 1 A, Number of Delay Functions 1, Delay Function Delay On Make, Flat Pin Width 0.25 in, Input Voltage 10 to 120V AC, 19 to 265V DC, Minimum Time Setting 1 sec, Maximum Time Setting 1,023 sec, Number of Pins 2, Mounting Style Panel Door, Adjustment Interface Digital
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.30
- Package Height: 1.40
- Package Weight: 0.15
Product info last updated on February 4, 2026 7:44am UTC
Category: Industrial Electrical Controls and Automation
