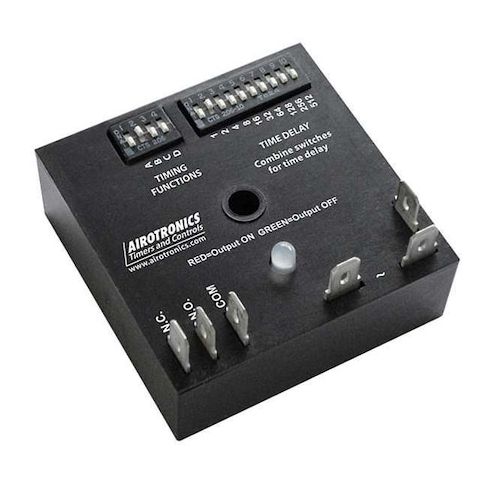

Multifunction Time Delay Relay, Square, 5 Functions 24V AC, SPDT MPN:MC3003631H
Multifunction Time Delay Relay, Square, 5 Functions 24V AC, SPDT
This multifunction time delay relay is a versatile and reliable solution for a wide range of industrial and commercial applications. With 5 adjustable delay functions, including delay on break, delay on make, interval, resettable single shot/watchdog, and single shot, this relay can be used to control and automate various processes. Its compact square design and quick-connect terminal make it easy to integrate into existing systems. The relay's 24V AC coil voltage and 10A contact rating ensure reliable operation in demanding environments. Suitable for use in manufacturing, automation, and control systems, this relay provides a high level of flexibility and precision in timing control.
Top product features:
- Adjustment Method: Dip Switch
- Contact Form: SPDT
- Number of Delay Functions: 5
Top product applications:
- Automotive Lighting Systems
- Industrial Process Control
- Medical Equipment Synchronization
Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Contact Rating (AC) 10 A @ 24V, Current Rating 10 A, Number of Delay Functions 5, Delay Function Delay On Break, Delay On Make, Interval, Resettable Single Shot/Watchdog, Single Shot, Electrical Connection Quick-Connect Terminal, Input Voltage 24V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1,023 min, Number of Pins 6, Mounting Style Surface
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.76
- Package Width: 3.12
- Package Height: 2.92
- Package Weight: 1.70
Product info last updated on March 4, 2026 7:52pm UTC
Category: Industrial Electrical Controls and Automation
