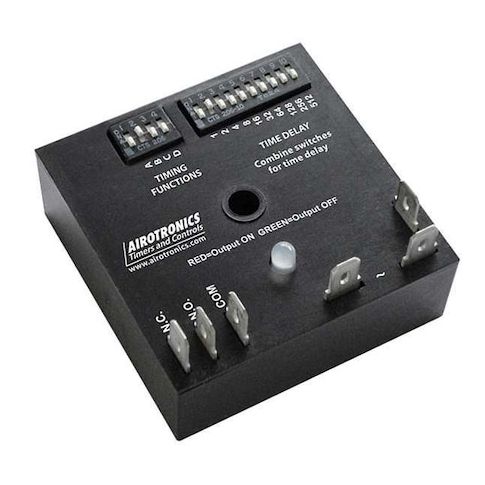

Multifunction Time Delay Relay, Square, 5 Functions 230V AC, SPDT MPN:MC2003631H
Multifunction Time Delay Relay, Square, 5 Functions 230V AC, SPDT
The Airotronics Multifunction Time Delay Relay is a versatile and reliable solution for a wide range of applications. With 5 delay functions, including delay on break, delay on make, interval, resettable single shot/watchdog, and single shot, this relay can be used in control systems, automation, and industrial processes. Its compact square design and quick-connect terminals make it easy to integrate into existing systems. The relay's adjustable delay time range of 0.1 seconds to 1 hour and 23 minutes allows for precise timing control. Ideal for use in manufacturing, HVAC, and other industries where timing and control are critical.
Top product features:
- Adjustment Method Dip Switch
- Contact Form SPDT
- Resettable Single Shot/Watchdog Function
Top product applications:
- Automotive Applications: The multifunction time delay relay can be used to control the timing of accessories such as headlights, windshield wipers, and heating systems in vehicles.
- Industrial Automation: This relay can be used to control and automate industrial processes, such as controlling the timing of machinery startup and shutdown, or implementing a watchdog function to monitor system health.
- Medical Equipment: The relay can be used to control the timing of medical equipment such as ventilators, defibrillators, and other life-support systems, ensuring that they operate within safe and predetermined time intervals.
Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 230V AC, Contact Form SPDT, Contact Rating (AC) 10 A @ 240V, Current Rating 10 A, Number of Delay Functions 5, Delay Function Delay On Break, Delay On Make, Interval, Resettable Single Shot/Watchdog, Single Shot, Electrical Connection Quick-Connect Terminal, Input Voltage 230V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1,023 min, Number of Pins 6, Mounting Style Surface
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.76
- Package Width: 3.12
- Package Height: 2.92
- Package Weight: 1.70
Product info last updated on February 18, 2026 11:02am UTC
Category: Industrial Electrical Controls and Automation
