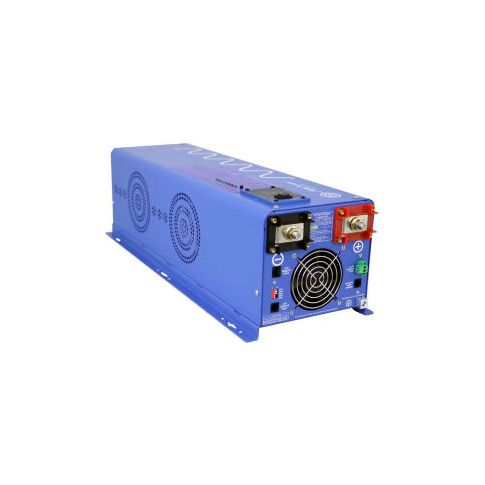

AIMS Power 6000 Watt Inverter Charger 48VDC to 120VAC PICOGLF60W48V120V PICOGLF60W48V120V

Built for large 120 volt ac load demands this 6000 watt pure sine inverter is able to output one single leg of 120vac power at the full rated 6000 watts. This inverter is a 48vdc input meaning the inverter will be more efficient and smaller dc cables can be used compared to 12vdc or 24vdc systems. This inverter also features a built in smart battery charger and automatic transfer switch for accepting utility or generator power. For large startup needs the inverter has a 300 surge capacity for up to 20s so pumps motors and compressors may be started up without overloading the inverter. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" 6000 watt low frequency inverter 110 vac single phase 18000 watt surge for 20 seconds -3x surge capability battery priority selector terminal block marine coated and protected multi stage smart charger 80 amp remote panel available auto gen start 60hz or 50 hz selectable dip switch 10msec typical transfer time optional 25w power save mode 7 battery type settings for charger inverter output specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" continuous output power 6000 watts surge rating 18000 watts (20 seconds) output waveform pure sine/same as input (bypass mode) 100-110-120vac nominal efficiency 88 (peak) line mode efficiency 95 output frequency 50hz +/- 0.3hz / 60hz +/- 0.3hz typical transfer time 10ms (max) thd 10 dc input specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" nominal input voltage 48.0vdc low battery alarm 42.0vdc-44.0vdc low battery trip 40.0vdc-42.0vdc high voltage alarm 64.0vdc low battery voltage restart 62.0vdc idle consumption 4.16 amps dc power saver mode idle consumption 0.83 amps dc charger specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" output voltage depends on bat
