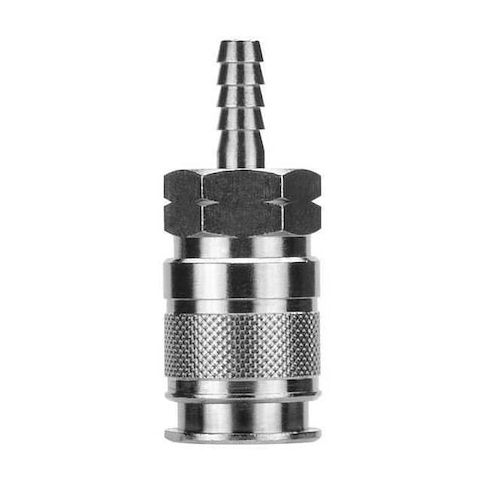

Quick Disconnect Fitting, Clamp, 1/4, Brass MPN:80193-08
Streamline your compressed air system with the Aignep USA Quick Disconnect Fitting. Designed for use with air tools, this push/pull sleeve locking mechanism ensures a sealed connection when installed with compatible hoses and fittings. Constructed from durable brass with a nickel-plated finish, this coupling supports high-pressure applications and features a poppet valve to regulate air flow during connection and disconnection. Ideal for use in various industries, including manufacturing, construction, and automotive, this quick-connect fitting provides easy connection and disconnection of hoses or equipment, reducing downtime and increasing productivity.
Top product features:
- Push/pull sleeve locking mechanism to support connection and disconnection of hoses or equipment with a sealed connection.
- Includes a poppet valve to regulate air flow during connection and disconnection.
- Constructed from brass with a nickel-plated finish for corrosion resistance and durability.
Top product applications:
- Compressed Air Systems
- Air Tools
- Hose Couplings
The AIGNEP USA - 80193-08 is a quick-connect hose coupling designed for use in compressed air systems and with air tools. It features a push/pull sleeve locking mechanism to support connection and disconnection of hoses or equipment with a sealed connection when installed using compatible hoses and fittings. Constructed from brass with a nickel-plated finish, this coupling is compatible with specified quick-connect interchange standards (see compatibility specifications) and includes a poppet valve to regulate air flow during connection and disconnection. The fitting caters to a hose barb connection style with a barb size of 1/2 inch and a quick connect body size of 1/4 inch.
Key Features:
- - Coupling Size: 1/4 in with Hose Fitting Size: 1/2 in, Male gender
- - Material: Brass with nickel-plated finish
- - Includes nickel-plated brass body, stainless steel locking balls, and a protected seal
- - Maximum rated flow rate: 595 liters per minute (under specified flow conditions)
- - Maximum rated working pressure: 250 psi at 70°F
- - Operating temperature range: 0°F to 160°F
- - Overall length: 2.44 inches
- - Maximum outside diameter: 15/16 inch
- - Seal material: Nitrile
- - Connection Type: Hose Barb
- - Coupling Component: Socket
- - Locking Type: Sleeve
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
