Quick Disconnect Fitting, Clamp, 1/4, Brass MPN:80193-06
Quick Disconnect Fitting, Clamp, 1/4, Brass

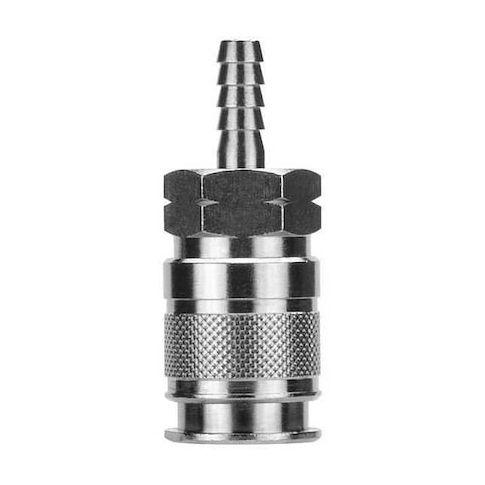

The AIGNEP USA - 80193-06 is a quick connect hose coupling intended for compressed air hose connections. It supports quick connection and disconnection using the sleeve locking mechanism, and is intended to form a seal for compressed air hose connections under the rated operating conditions. The coupling features a brass body with a nickel-plated finish and includes an integrated poppet valve to control airflow. It has a hose barb connection with a 3/8 in barb size and a 1/4 in body size, suitable for compressed air service applications.
Key Features:
- - Material: Brass with nickel-plated finish
- - Connection Type: Hose Barb with 3/8 in barb size and 1/4 in coupling size
- - Hose Fitting Gender: Male
- - Includes: Nickel-plated brass components, stainless steel locking balls, and protected seal
- - Valve Type: Poppet valve included
- - Coupling Locking Type: Sleeve locking mechanism
- - Rated Flow Capacity: 595 lpm
- - Rated for Use Up To 250 psi at 70°F
- - Rated Temperature Range: 0°F to 160°F
- - Overall Length: 2.44 in
- - Seal Material: Nitrile
- - Interchange Type: Universal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on February 3, 2026 7:14am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
