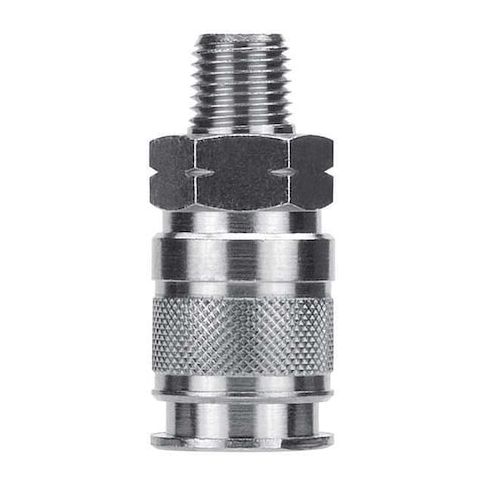

Quick Disconn. Fitting, (M)NPT, 1/4, Brass MPN:80191-04
The Aignep USA Quick Connect Hose Coupling Socket is a reliable and efficient solution for compressed air systems and air tools. Its sleeve locking mechanism ensures quick and easy connection and disconnection, minimizing downtime and maximizing productivity. Constructed from durable brass with a nickel-plated finish, this coupling provides a leak-free joint with a maximum flow rate of 595 L/min and working pressures up to 250 psi. Suitable for a wide range of applications, including pneumatic tools, air compressors, and industrial equipment, this coupling is the perfect choice for anyone looking to streamline their operations and reduce maintenance costs.
Top product features:
- Sleeve locking mechanism for quick connection and disconnection of hoses
- Poppet valve controls air flow during connection
- Nickel-plated brass body provides a joint with a sealing mechanism to limit air leakage during connection
Top product applications:
- Compressed air systems
- Air tools
- Hoses within compressed air systems and air tools
The AIGNEP USA - 80191-04 is a quick connect hose coupling designed for supports quick connection and disconnection using a sleeve locking mechanism of hoses within compressed air systems and air tools. Constructed from brass with a nickel-plated finish, this coupling provides a joint with a sealing mechanism intended to limit air leakage during properly performed connection using a sleeve locking mechanism and a poppet valve that controls air flow during connection. It features a 1/4 in body size and coupling size with a male hose fitting, compatible with 1/4 in NPT male connections and universal interchange according to the stated specifications. The coupling has a maximum rated flow rate of 595 L/min and is rated for working pressures up to 250 psi at 70°F at 70°F, is rated for operation within 0°F to 160°F.
Key Features:
- - Material: Brass with nickel-plated finish
- - Connection Type: 1/4" NPT Male threads
- - Coupling Locking Type: Sleeve
- - Valve Type: Poppet valve included
- - Seal Material: Nitrile
- - Max. Flow Rate: 595 L/min
- - Max. Working Pressure: 250 psi at 70°F
- - Temperature Range: 0°F to 160°F
- - Overall Length: 2.13 inches
- - Max. Outside Diameter: 15/16 inches
- - Includes: Nickel-plated brass body, stainless steel locking balls, protected seal
- - Interchange Type: Universal
- - Application: Compressed air systems, air tools
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.21
