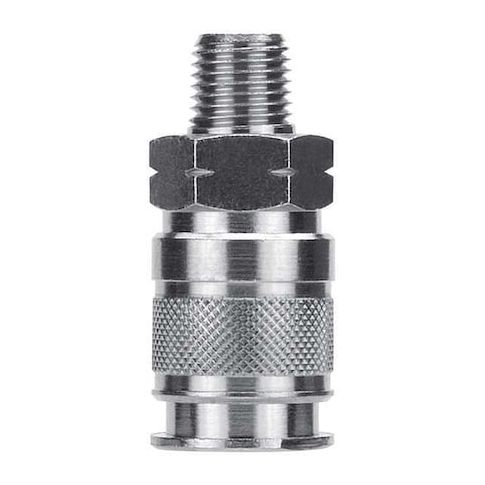

Quick Disconn. Fitting, (M)NPT, 3/8, Brass MPN:80194-06
Streamline your compressed air system with the Aignep USA Quick Connect Hose Coupling. This universal socket coupling enables rapid, tool-free connection and disconnection of hoses and equipment via a sleeve locking mechanism, ensuring a sealed connection. Suitable for use in compressed air systems and air tools, it features a nickel-plated brass construction with corrosion-resistant nitrile seals. Ideal for applications where frequent hose changes are necessary, this coupling is perfect for manufacturing, maintenance, and repair operations, as well as in industries such as automotive, aerospace, and oil and gas. Its compact design and high flow rate make it an efficient solution.
Top product features:
- The product enables rapid, tool-free connection and disconnection of hoses or equipment via a sleeve locking mechanism, forming a sealed connection when installed and used with compatible hoses and fittings.
- The product includes an integrated poppet valve that provides a direct benefit to the user by regulating flow and pressure.
- The product's nickel-plated brass construction with a nitrile seal provides corrosion resistance, ensuring the longevity and reliability of the product.
Top product applications:
- Compressed Air Systems
- Compressed air systems use the quick connect hose coupling to enable rapid, tool-free connection and disconnection of hoses or equipment.
- Air Tools
The AIGNEP USA - 80194-06 is a quick connect hose coupling designed for use in compressed air systems and air tools. It enables rapid, tool-free connection and disconnection of hoses or equipment via a sleeve locking mechanism, forming a sealed connection when installed and used with compatible hoses and fittings. The coupling is compatible with universal interchange standards and includes an integrated poppet valve. Its nickel-plated brass construction, with a nitrile seal, provides corrosion resistance. The product is rated for a maximum working pressure of 250 psi and a maximum flow rate of 595 liters per minute (per specified conditions). The nominal body and coupling size is 3/8 inch with a male hose fitting.
Key Features:
- - Material: brass with nickel-plated finish
- - Hose Fitting Size: 3/8 inch, Thread Size: 3/8"-18 NPTM
- - Connection Type: Male NPT thread
- - Coupling Component: Socket with sleeve locking type
- - Seal made of nitrile material
- - Includes a nickel-plated brass body, stainless steel locking balls, and a seal
- - Maximum working pressure rating: 250 psi at 70°F
- - Maximum flow rate: 595 liters per minute
- - Operating temperature range: 0°F to 160°F
- - Overall length: 2.38 inches
- maximum outside diameter: 1.125 inches
- - Valve Type: Integrated poppet valve
- - Interchange Type: Universal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.20
- Package Weight: 0.29
