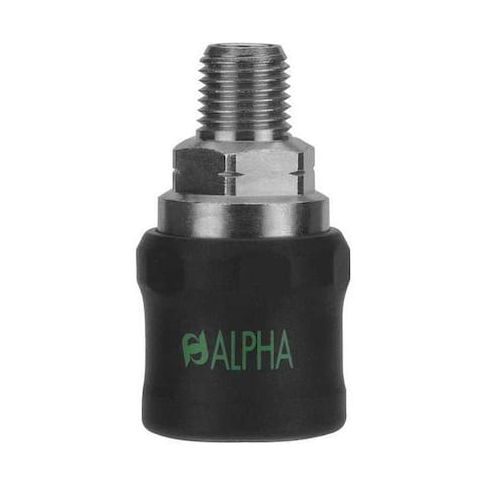

Safety Exhaust Coupler, 1/4", Brass, 45 cfm MPN:80621-04
Safety Exhaust Coupler, 1/4", Brass, 45 cfm
The AIGNEP USA - 80621-04 is a quick connect hose coupling for pneumatic applications. It supports connection and disconnection without requiring tools using a vented locking mechanism. Is constructed from brass with a zinc black anodized finish, this coupling includes an integrated poppet valve and uses NPT threaded connections. It provides a sealed joint using a nitrile seal. Compatible with industrial interchange standards (per specified interchange requirements), it is rated for 1/4 in hose and coupling size connections.
Key Features:
- - Application: Pneumatic
- - Connection Type: NPT thread with 1/4"-18 size
- - Coupling Component: Socket
- - Coupling Locking Type: Safety Vent
- - Coupling Size: 1/4 in
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/4 in
- - Includes Valve: Yes, Poppet type
- - Interchange Type: Industrial
- - Material: Brass with Zinc Black Anodized finish
- - Max. Flow Rate: 595 lpm
- - Max. Working Pressure @ 70°F: 220 psi
- - Max. Outside Diameter: 1 3/16 in
- - Overall Length: 2.19 in
- - Seal Material: Nitrile
- - Temperature Range: 0°F to 180°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.15
