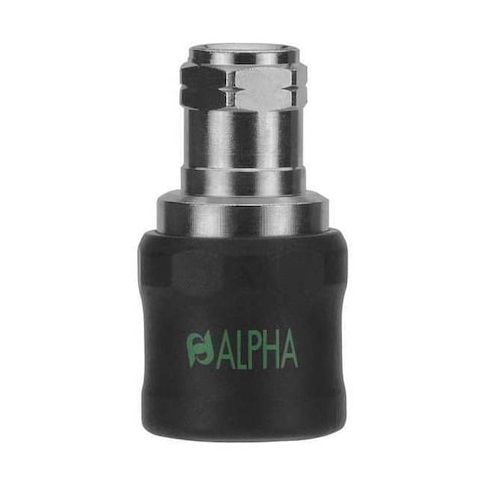

Safety Exhaust Coupler, 1/4", Brass MPN:80622-04
The Aignep USA 80622-04 Quick Connect Hose Coupling is a reliable and efficient solution for pneumatic applications. This industrial-grade coupling features a quick-connect feature with a safety vent locking mechanism, allowing for rapid connection and disconnection without tools. Constructed from durable brass with a zinc black anodized finish, it withstands high pressures and temperatures. Ideal for use in various industrial settings, including manufacturing, construction, and oil and gas applications. The coupling's high flow rate and pressure rating make it suitable for demanding pneumatic systems, ensuring seamless operation and minimizing downtime.
Top product features:
- Quick-connect feature allows for rapid connection and disconnection without requiring tools.
- Integrated safety vent locking mechanism provides secure connection and prevents accidental disconnection.
- Includes an integrated poppet valve to regulate flow and prevent backflow.
Top product applications:
- Pneumatic use
- Industrial
- General Purpose
The AIGNEP USA - 80622-04 is a hose coupling for pneumatic applications with quick-connect feature. Rated for pneumatic use (within specified pressure/temperature ranges), it provides rapid connection and disconnection without requiring tools (per product design) using an integrated safety vent locking mechanism. Constructed of brass with a zinc black anodized finish, the coupling includes an integrated poppet valve and features a socket component. It has a maximum flow rate of 595 L/min. It supports a maximum working pressure of up to 220 psi at 70°F, with a temperature range from 0°F to 180°F. The coupling provides a connection intended to be sealed using the included nitrile seal (compatibility based on specified installation/conditions) and is compatible with specified industrial interchange standards (as applicable).
Key Features:
- - Application: Pneumatic use.
- - Connection type: 1/4" NPT female thread.
- - Coupling size and hose fitting size: 1/4 in.
- - Hose fitting gender: Female.
- - Coupling component: Socket.
- - Coupling locking type: Safety Vent.
- - Material: Brass with zinc black anodized finish.
- - Seal material: Nitrile.
- - Includes integrated poppet valve.
- - Maximum flow rate: 595 lpm.
- - Maximum working pressure: 220 psi @ 70°F.
- - Maximum outside diameter: 1 3/16 in.
- - Overall length: 2 3/16 in.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.16
