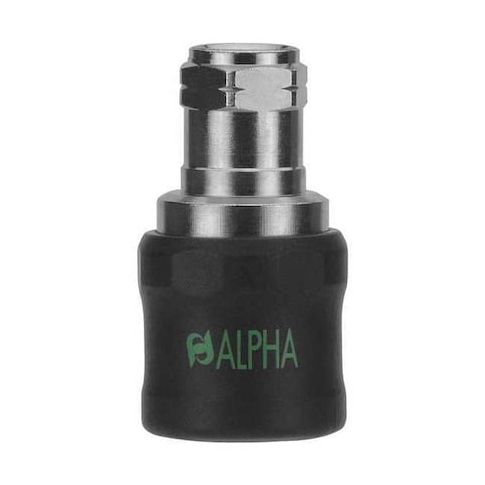

Exhaust Coupler, 3/8", Brass, 100 cfm MPN:80622-06
Streamline your pneumatic fluid transfer systems with the Aignep USA Quick Connect Socket Coupling. Designed for easy connection and disconnection without tools, this coupling features a vent-locking mechanism and poppet-type valve for controlled air flow. Constructed from durable brass with a zinc black anodized finish, it's perfect for industrial applications. Compatible with NPT threads and pneumatic fluid transfer systems, this coupling is ideal for air-line routing and fluid transfer in manufacturing, processing, and other industries. Its high flow rate and working pressure make it a reliable choice for demanding applications, ensuring efficient and safe operation.
Top product features:
- Supports connection and disconnection without tools using the integrated coupling mechanism.
- Includes a vent-locking mechanism designed to vent and lock during connection/disconnection.
- Includes a poppet-type valve for controlling air flow during connection and disconnection.
Top product applications:
- Pneumatic fluid transfer systems
- Air-line routing
- Industrial pneumatic applications
The AIGNEP USA - 80622-06 is a quick connect hose coupling designed for pneumatic applications. It supports connection and disconnection without tools using the integrated coupling mechanism. It is intended for use in pneumatic fluid transfer systems with connection/disconnection for air-line routing. It includes a vent-locking mechanism designed to vent and lock during connection/disconnection. It includes a poppet-type valve for controlling air flow during connection and disconnection. It is compatible with industrial interchange standards and is constructed primarily of brass with a zinc black anodized finish.
Key Features:
- - Application: Pneumatic
- - Material: Brass
- - Coupling Size: 1/4 in
- - Hose Fitting Size: 3/8 in
- - Hose Fitting Gender: Female
- - Connection Type: NPT (3/8"-18 thread size)
- - Coupling Component: Socket
- - Coupling Locking Type: Safety Vent
- - Valve: Includes a poppet-type valve
- - Max. Flow Rate: 595 lpm
- - Max. Working Pressure @ 70°F: 220 psi
- - Seal Material: Nitrile
- - Temperature Range: 0°F to 180°F
- - Finish/Coating: Zinc Black Anodized
- - Overall Length: 2.13 in
- - Max. Outside Diameter: 1.19 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.76
