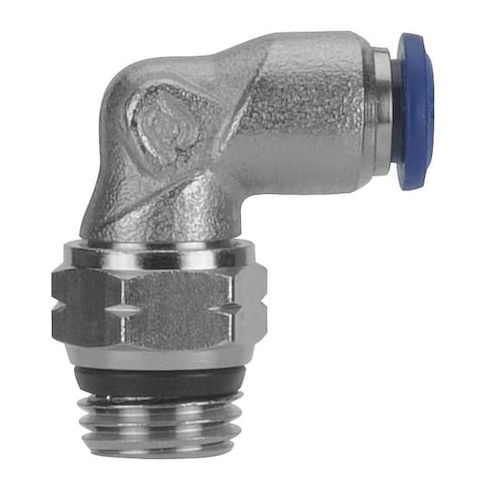

Push-Fit Elbow Fitting, Push-to-Connect x Universal, 1/4 in Tube OD, 1/4 in Pipe Size, Metal, 5 PK MPN:87110-04-04
The Aignep USA Push-Fit Elbow Fitting is a reliable and efficient solution for connecting hoses in various applications. Designed for use with air-driven tools and equipment, this push-to-connect fitting provides quick and secure connections without the need for tools, clamps, or thread adjustments. Made from sturdy nickel-plated brass, it can withstand temperatures up to 160°F and pressures up to 250 psi, making it suitable for a range of industries. Ideal for use in power transmission, pneumatic systems, and hydraulic equipment, this fitting ensures a leak-free connection and is compatible with various tube materials.
Top product features:
- The fitting is designed to join two lengths of hose at a right angle.
- The Push-to-Connect x Universal connection type is designed to facilitate quicker and potentially more secure connections.
- The Nickel-Plated Brass body is designed with the intent to be strong, long-lasting, and resist wear.
Top product applications:
- Air
- Connecting hoses for air-driven tools and equipment
- Air-powered tools and pneumatic systems
The AIGNEP USA - 31122408 is a push-fit elbow fitting listed in the category of "Push On Hose Fittings". An essential item for connecting hoses with a nominal tube size of 1/4 inch, this fitting is designed for connections where the use of tools, clamps, or thread adjustments may not be required. Composed of sturdy metal components, specifically brass and nickel-plated brass, it has been finished in a way that is intended to cope with exposure to variable temperatures and pressures. The primary application for this product is air, making it potentially compatible with a variety of air-driven tools and equipment.
Key Features:
- Fitting Material: The Nickel-Plated Brass body is designed with the intent to be strong, long-lasting, and resist wear.
- Connection Type: The Push-to-Connect x Universal connection type is designed to facilitate quicker and potentially more secure connections.
- Compatible Tube Material: The fitting is designed to interface with tubes made of materials such as copper, nylon, polyethylene, and polyurethane.
- Operating Temperature and Pressure: The fitting is intended to function within a temperature range of 0 to 160 degrees F and under pressures up to a maximum of 250 psi/290 psi (max operating pressure specified under two attributes).
- Fitting Shape: The 90 degree elbow fitting is designed to join two lengths of hose at a right angle.
- Standards: The fitting is manufactured to meet ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified, indicating that the product has been produced in accordance with certain industry specifications.
- System of Measurement: The fitting uses the Imperial system, ensuring compatibility with other fittings using the same measurement system.
- Thread Sealant: The fitting comes with pre-applied thread sealant for the intended purpose of sealing threaded joints more quickly and possibly more reliably.
- Color: The fitting is silver in color, to easily blend in with most metallic tools or machinery.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.60
- Package Width: 2.30
- Package Height: 0.70
- Package Weight: 0.29
