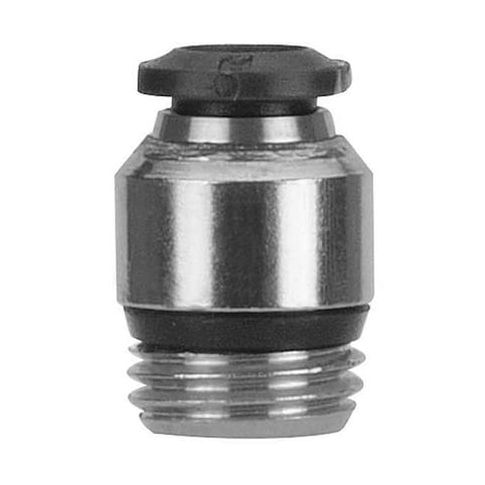

Push-Fit Adapter Fitting, Push-to-Connect x Universal, 8mm Tube OD, 1/8 in Pipe Size, Metal, 5 PK MPN:50010N-8-1/8-PK5
Free Shipping
In Stock
The Aignep USA Push-Fit Adapter Fitting is a versatile and durable solution for connecting push-on hoses to other hoses, pipes, or threaded components. With its nickel-plated brass construction and push-fit mechanism, it offers fast assembly and easy disassembly, making it ideal for a variety of applications including pneumatic systems, medical equipment, and industrial processes. Its broad temperature range and high pressure rating ensure reliable performance in demanding environments. Suitable for use with various tube materials, this adapter fitting is a reliable choice for industries that require quick and easy connections in a range of settings.
Top product features:
- The adapter fitting allows for a connection, connecting a push-on hose to another hose, pipe, or threaded component by simply inserting the hose over the fitting’s barbs or sealing surface.
- It features a push-fit mechanism that facilitates fast assembly and easy disassembly.
- It is crafted from durable nickel-plated brass material for resistance to wear and tear.
Top product applications:
- Air systems
- Medical equipment
- Industrial pneumatic systems
The AIGNEP USA - 50010N-8-1/8-PK5 is a Push-Fit Adapter Fitting within the Push On Hose Fittings category. The adapter fitting allows for a connection, connecting a push-on hose to another hose, pipe, or threaded component by simply inserting the hose over the fitting’s barbs or sealing surface. Fast assembly and easy disassembly are facilitated, owing to the fitting's push-fit mechanism. It's primarily built of durable metal, particularly nickel-plated brass, and is crafted for resistance to wear and tear. This adapter can accommodate various tube materials including FEP, Polyamide 11, Polyamide 12, Polyamide 6, Polyethylene, Polyurethane, and PTFE. It is rated for operation up to a maximum pressure of 290 psi, and functions within a broad temperature range from 0 Degrees F to a high of 160 Degrees F.
Key Features:
- Works within Imperial/Metric measurement systems.
- Engineered for optimal performance in temperatures between 0 Degrees F to 160 Degrees F.
- Rated for operation up to a maximum pressure of 290 psi.
- Fashioned from robust nickel-plated brass material.
- Features a smooth nickel-plated finish.
- Fitting side 1 tube outer diameter is 8mm while fitting side 2 pipe size is 1/8 inch.
- Suited for medium types such as air.
- Overall length of the fitting is 31/32 inch.
- Manufactured in accordance with standards including ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, and identified as Silicone Free.
- Includes Universal Thread System, fit for both inch and metric threads.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.00
- Package Width: 1.30
- Package Height: 0.50
- Package Weight: 0.13
