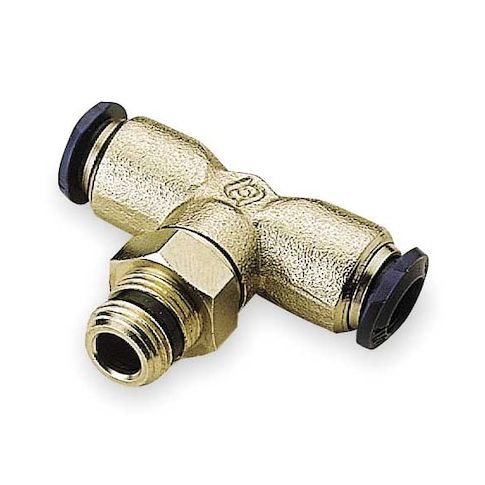

Push-Fit Tee Fitting, Push-to-Connect x Push-to-Connect x MNPT, 3/8 in Tube OD, 1/4 in Pipe Size MPN:88210-06-04
The AIGNEP USA Push-Fit Tee Fitting is a versatile and durable solution for air system applications. Constructed of nickel-plated brass, this T-shaped connector is designed for long-term use and features a push-to-connect connection type for easy installation. With a maximum pressure rating of 250 psi and operating temperature range of 0 to 160 degrees F, this fitting is suitable for a variety of contexts, including use with copper, nylon, polyethylene, and polyurethane tubes. Ideal for applications where fluid or air needs to be diverged or combined at a right-angle junction, this fitting offers a compact and efficient solution.
Top product features:
- The fitting is constructed of nickel-plated brass for durability and corrosion resistance.
- The fitting boasts a T-shaped connector, effective for diverging or combining fluid or air at a right-angle junction.
- The connection type utilizes push-to-connect X push-to-connect X MNPT, ensuring versatility.
Top product applications:
- Air systems
- Pneumatic systems
- Medical air distribution systems
The AIGNEP USA - 31524236 is a Push-Fit Tee Fitting designed for use in air systems. Constructed of nickel-plated brass, this fitting boasts a silver finish and is optimized for long-term applications. A key characteristic of this fitting is its T-shaped connector, effective for diverging or combining fluid or air at a right-angle junction. It is compatible with various tube materials such as copper, nylon, polyethylene, and polyurethane, enabling use across different contexts.
Key Features:
- - The fitting material primarily comprises brass. This indicates use of metal, denoting intended durability.
- - The connection type utilizes push-to-connect X push-to-connect X MNPT, ensuring versatility.
- - The max pressure rating is 250 psi, indicating the ability to withstand relatively high pressure levels.
- - The operating temperature range is 0 to 160 degrees F. This is the recommended operating temperature range.
- - The overall length measures 2 3/32 inch, demonstrating compactness and efficient space utilization.
- - Features a branch tee fitting shape, signifying flow direction.
- - The nickel-plated finish is designed for corrosion resistance.
- - The fitting uses an imperial system of measurement for convenience.
Additional Information
- Country of Origin: SE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 7.00
- Package Width: 4.50
- Package Height: 0.60
- Package Weight: 1.50
