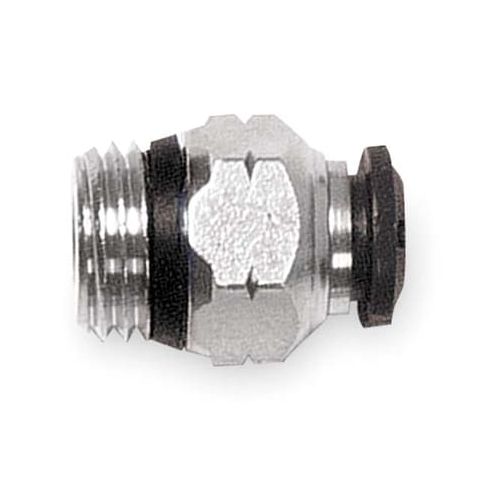

Push-Fit Adapter Fitting, Push-to-Connect x Universal, 8mm Tube OD, 1/8 in Pipe Size, Metal, 5 PK MPN:50000N-8-1/8-PK5

The AIGNEP USA - 50000N-8-1/8-PK5 is a Push-Fit Adapter Fitting designed for air applications. This essential component allows the connection between hoses, pipes, or threaded components. It serves as an intermediary that permits changes in direction, diameter, or both simultaneously. The "Push-to-Connect x Universal" connection type provides a type of connection typically used where frequent disconnection and reconnection of the fitting are required. Constructed from nickel plated brass, this fitting is suitable for typical industrial use.

Key Features:

• Dimension & Compatibility: The adapter is designed for 8 mm outer diameter tubes and 1/8 inch pipe size connections on both sides. It's compatible with copper, nylon, polyethylene, and polyurethane tubing.
• Material & Performance: This fitting is made from nickel-plated brass and is rated for a maximum pressure of 250 psi. Its operating temperature is in the range of 0 to 160 Degrees F.
• Connection Types: The adapter incorporates a Push-to-Connect x Universal connector type that makes efficient connections between different components.
• Standards & Certifications: This adapter is manufactured in adherence to multiple standards including ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE. It is certified to be silicone-free.
• Specifications: The adapter fitting, pre-applied with thread sealant, comes with a rubber release ring. It has a hex head size of 14 mm and an overall length of 31/32 inches.
• Universal adaptation: The fitting features a universal thread system. It is compatible with common types of thread systems, making it suitable for various applications.
