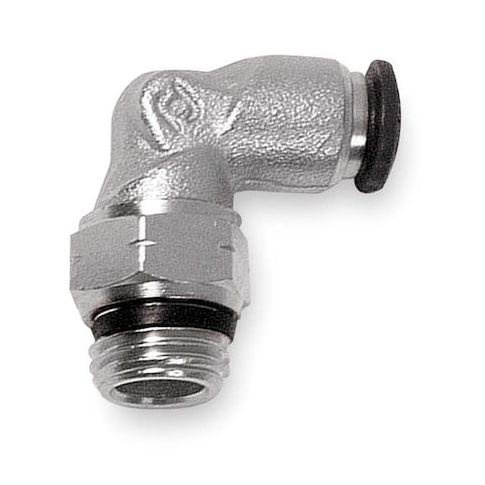

Push-Fit Elbow Fitting, Push-to-Connect x Universal, 8mm Tube OD, 1/8 in Pipe Size, Metal, 5 PK MPN:50110N-8-1/8-PK5

• The AIGNEP USA - 50110N-8-1/8-PK5 Push-Fit Elbow Fitting falls under the category of Push-On Hose Fittings. This product serves as a connecting element between two lengths of flexible tubing or hose. Its design eliminates the requirement for tools, clamps, or threaded connections but these may still be used if deemed necessary by the user. The primary objective of this particular fitting is to establish a right-angle connection for air, water, and low-pressure fluid lines. Although designed to minimize leakage, total elimination of leaks depends on the condition and correct installation of the product. The primary fitting material is brass and the structural body is made up of nickel-plated brass, finished in silver. The product is rated for operation within a pressure of up to 290 psi and a temperature range between 0 and 160 Degrees F.

  Key Features:

  • - Compatible with copper, nylon, polyethylene, and polyurethane tube materials
  • - Integrated Swivel feature
  • - Rated for operations up to a pressure of 290 psi
  • - Capable of operation within a temperature range from 0 Degrees to 160 Degrees F
  • - Facilitates a connection type of "Push-to-Connect x Universal", enabling compatibility with diverse connection styles
  • - Pre-Applied Thread Sealant Included
  • effectiveness of sealing depends on correct installation and material compatibility
  • - Fitting Side A Tube Outer Diameter: 8 mm, which allows for specific flow rate capabilities
  • - Designed to be compatible with both inch and metric threads, actual compatibility may depend on the specifications of the other component
  • - Fitting Side 2 Pipe Size: 1/8 in, indicating the breadth of pipe this fitting can accommodate.
