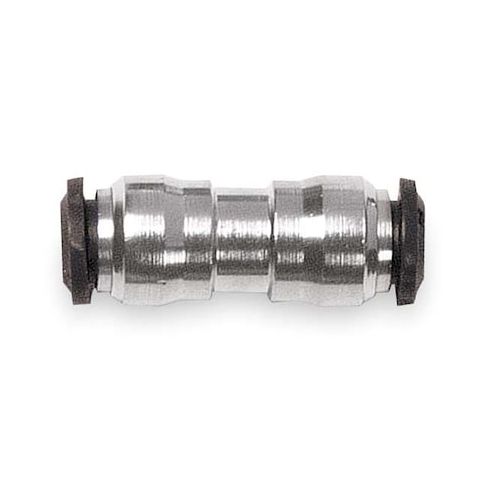

Push-Fit Union Fitting, Push-to-Connect x Push-to-Connect, 8 x 6mm Tube OD, Metal, 5 PK MPN:50040N-8-6-PK5

The AIGNEP USA - 50040N-8-6-PK5 is an industrial tool classified under "Push On Hose Fittings" products. The primary use of this tool is to connect tubes in air applications. Constructed from strong, nickel-plated brass, this fitting is rated for a maximum operating pressure of 290 psi and is rated for operation within temperature ranges of 0 to 160 Degrees F. It can be utilized with copper, nylon, polyethylene, and polyurethane tubes, making it a versatile option for various tubing materials. This fitting features an 8mm tube outer diameter on side A and a 6mm tube outer diameter on side B.

Key Features:

• - Connection type: Push-to-Connect x Push-to-Connect - This feature means that both ends of the hose fitting possess push-to-connect functionality.
• - Connector type: Reducer – This element is intended for connection between tubes of different sizes.
• - Operating pressure: Maximum - 290 psi – This figure indicates the highest pressure the fitting can withstand.
• - Compatible Tube Material: Copper, Nylon, Polyethylene, Polyurethane – This list identifies the types of tubes appropriate for use with the fitting.
• - Temperature range: 0 Degrees to 160 Degrees F – This range shows the approved temperature parameters for using the fitting.
• - Material: Nickel Plated Brass - The material used in manufacturing may have an impact on its performance.
• - Tube Size: 8 x 6mm – These dimensions specify the designed tube sizes for connections on either side of the fitting.
• - Standards: ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified - The product has certifications from recognised international quality standards.
