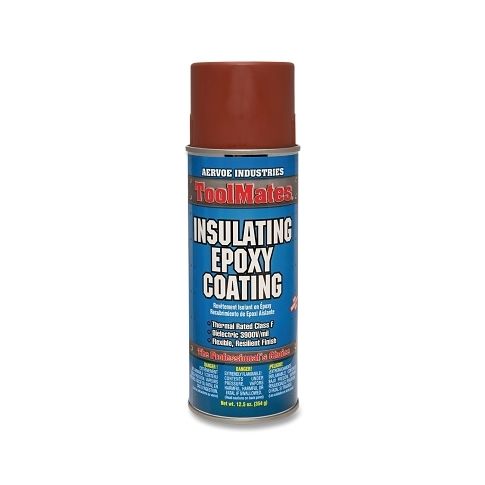

Red Epoxy Insulating Coating 12.5 Oz Aerosol MPN:401
Red Epoxy Insulating Coating 12.5 Oz Aerosol MPN:401
Insulating Epoxy, 12.5 oz, Aerosol Can, Red
Additional Information
- UPC Code: 088193004012
- Country of Origin: UNITED STATES
- Special Order Item: No
- State Restricted: YES
- Minimum Order Quantity: 12
- Minimum Order UOM: CAN
- Cost UOM: CS
- UOM Conversion: 12 CAN = 1 CS
- Item Weight: 1.0767
- Item Length: 2.8
- Item Width: 2.7667
- Item Height: 8.6
- Item Cube: 66.62214
Attributes
- Applications: Field Coils; Motor Windings; Taped Coils; Exposed Metal
- Capacity Vol. [Nom]: 12.5 oz
- Color: Red
- Container Size: 16 oz
- Packing Type: Aerosol Can
- Resistance: Abrasion; Wear
- Specific Gravity [Nom]: 0.84
- Temp. Range [Max]: 80 F
- Temp. Range [Min]: 60 F
- Type: Insulating Epoxy
Features
- Allows for heat expansion and contraction, resists oils, water, acids, alkalis and gasoline
- Dries in 15 minutes, hardens in 1 hour, excellent adhesion and high arc-resistance with a Class F Thermal Resistance rating
- Penetrates, coats and seals in one step
- Tough but flexible protector/insulator for exposed wires and electrical windings
- Will not chip, peel or become brittle
Product info last updated on April 24, 2026 9:50am UTC
Category: CHEMICALS LUBRICANTS and PAINTS
