Hydraulic hose assy, SAE 100R4 MPN:WH004-12-12MPT-12MPT-12"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G812217853

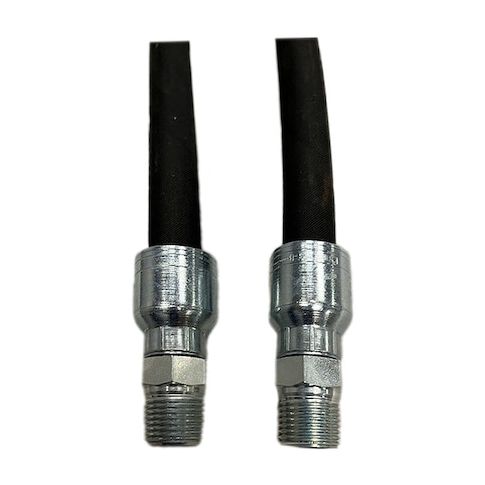

Hydraulic hose assy, SAE 100R4
This high-performance hydraulic hose assembly from AEROQUIP is designed for demanding applications in industries such as construction, manufacturing, and mining. With a maximum working pressure of 305 psi and a safety factor of 4:1, this hose assembly provides reliable performance in extreme temperatures from -40°F to 212°F. The wire braided construction and synthetic rubber materials ensure durability and flexibility, making it ideal for heavy-duty use in a variety of applications, including equipment operation, machinery maintenance, and fluid transfer. Its compact design and MSHA approval also make it suitable for use in confined spaces and hazardous environments.
Top product features:
- Wire Braided Hydraulic Hose Assembly
- Hose Tube Material is Synthetic Rubber for durability and resistance to chemicals and abrasion
- Hose Reinforcement is a single layer of Synthetic Fiber for added strength and flexibility
Top product applications:
- Heavy Equipment Hydraulic Systems
- Mobile Crane Hydraulic Systems
- Industrial Hydraulic Power Units
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 3/16 in, Hose Length 1 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Synthetic Fiber, Hose Braid Layers 1, Hose Color Black, Max. Working Pressure @ 70 F 305 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards MSHA Approved, SAE 100R4, Bend Radius 1 9/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 10.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 21, 2026 2:48pm UTC
Category: Hydraulic Cylinders and Equipment
