Wire Braided Hydraulic Hose Assembly MPN:EC415-16FL-16FL-60
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G612217916

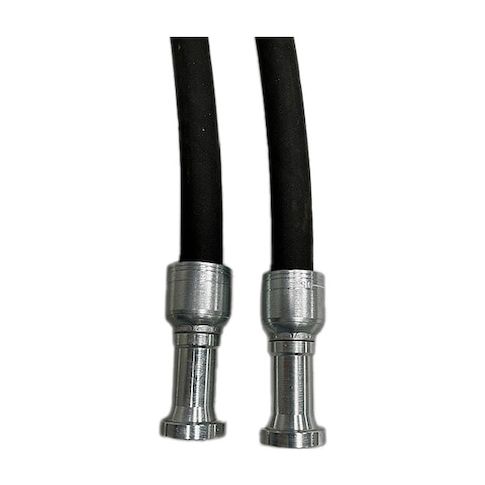

Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly is designed for heavy-duty applications, featuring a 5-foot length with a 1-inch inside diameter and 1.5-inch outside diameter. Constructed with synthetic rubber tubing and a wire-reinforced spiral braid, it provides exceptional flexibility and durability. The hose assembly meets MSHA and SAE 100R12 standards, ensuring safe and reliable operation in temperatures ranging from -40°F to 250°F. Suitable for use in industries such as mining, construction, and manufacturing, this hose assembly is ideal for applications requiring high pressure and temperature resistance, including equipment operation, fluid transfer, and hydraulic system connections.
Top product features:
- Wire braided construction provides high pressure resistance and flexibility
- Spiral wire reinforcement offers additional strength and durability
- Operating temperature range of -40 to 250 degrees F allows for use in extreme environments
Top product applications:
- Construction Equipment
- Mobile Hydraulic Systems
- Heavy Machinery
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 1/2 in, Hose Length 5 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 4,050 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 11 13/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 20.00
- Package Height: 1.00
- Package Weight: 8.50
Product info last updated on February 28, 2026 5:40pm UTC
Category: Hydraulic Cylinders and Equipment
