Wire Braided Hydraulic Hose Assembly MPN:EC415-16FL-16FL-120
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G612217855

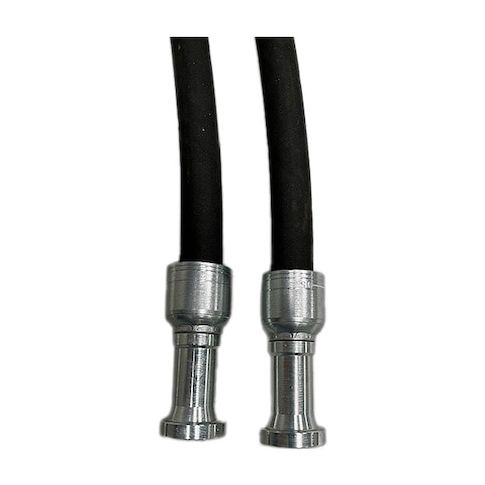

Wire Braided Hydraulic Hose Assembly
This heavy-duty wire braided hydraulic hose assembly from AEROQUIP is designed for demanding applications in industries such as mining, construction, and manufacturing. With a maximum working pressure of 4,050 psi and a temperature range of -40°F to 250°F, it can withstand extreme conditions. The 4-layer wire braid construction provides excellent durability and resistance to abrasion and chemicals. Suitable for use in high-pressure hydraulic systems, this hose assembly is MSHA approved and meets SAE 100R12 standards. Its compact design and flexible construction make it ideal for use in tight spaces and around corners, reducing the risk of kinking and damage.
Top product features:
- Wire braided construction provides increased durability and resistance to wear and tear.
- The hose has a spiral wire reinforcement that enhances its tensile strength and ability to withstand pressure.
- The hose is designed with a safety factor of 4:1, ensuring it can operate at a maximum working pressure of 4,050 psi.
Top product applications:
- Heavy Equipment Hydraulic Systems
- Industrial Machinery Hydraulic Systems
- Agricultural Equipment Hydraulic Systems
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 1/2 in, Hose Length 10 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 4,050 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 11 13/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 7.00
- Package Height: 24.00
- Package Weight: 12.50
Product info last updated on February 18, 2026 8:15am UTC
Category: Hydraulic Cylinders and Equipment
