Wire Braided Hydraulic Hose Assembly MPN:EC415-16-16FR-16FR-96
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G512218242

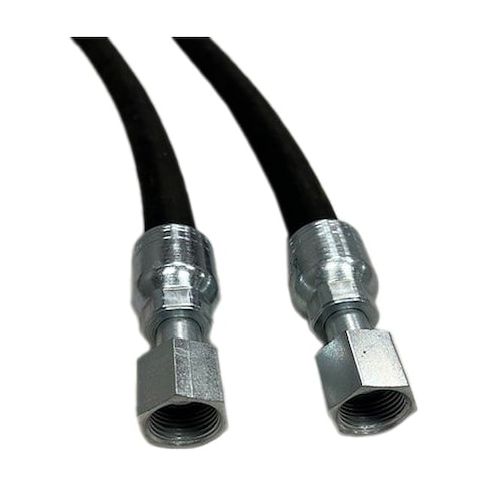

Wire Braided Hydraulic Hose Assembly
The AEROQUIP Wire Braided Hydraulic Hose Assembly is a heavy-duty solution for demanding applications. Designed for use in high-pressure hydraulic systems, this hose assembly features a 1-inch inside diameter and 1 1/2-inch outside diameter, with a 4-layer wire braid reinforcement for added strength and durability. With a maximum working pressure of 4,050 psi and a temperature range of -40 to 250 degrees F, this hose assembly is suitable for use in a variety of industries, including construction, mining, and manufacturing. Its compact design and MSHA approval make it an ideal choice for mobile equipment and heavy machinery.
Top product features:
- Wire braided reinforcement provides added strength and durability to the hose.
- Spiral wire reinforcement allows for flexibility and resistance to kinking.
- Maximum working pressure of 4,050 psi at 70°F ensures safe operation in high-pressure applications.
Top product applications:
- Industrial manufacturing equipment
- Heavy construction and mining machinery
- Agricultural equipment and farm machinery
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 1/2 in, Hose Length 8 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 4,050 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 11 13/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 7.00
- Package Height: 24.00
- Package Weight: 11.50
Product info last updated on January 19, 2026 10:12pm UTC
Category: Hydraulic Cylinders and Equipment
