Wire Braided Hydraulic Hose Assembly MPN:EC215-16-16FR-16FR-36"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G512217634

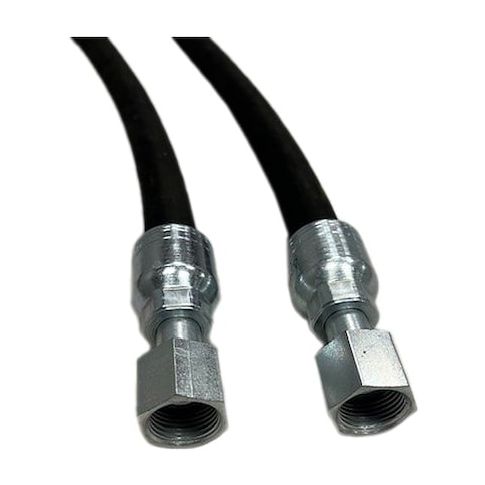

Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly from AEROQUIP is designed for demanding applications in various industries. Its 1-inch inside diameter and 1 7/16-inch outside diameter provide a robust and flexible connection for hydraulic systems. Suitable for temperatures ranging from -40 to 212 degrees Fahrenheit, it can withstand pressures up to 2,400 psi with a 4:1 safety factor. Measuring 3 feet in length, this hose assembly is ideal for use in construction, manufacturing, and heavy machinery operations, where reliability and durability are paramount. Its USCG, MSHA, and DNV certifications ensure compliance with industry standards.
Top product features:
- Wire Braided Hydraulic Hose Assembly is designed with a synthetic rubber hose tube for flexibility and resistance to abrasion.
- The hose features a wire braid reinforcement for added strength and durability.
- The assembly has a maximum working pressure of 2,400 psi at 70 F, providing a safe and reliable hydraulic connection.
Top product applications:
- Industrial machinery operation
- Heavy equipment maintenance
- Agricultural equipment operation
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 7/16 in, Hose Length 3 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Wire, Hose Braid Layers 2, Hose Color Black, Max. Working Pressure @ 70 F 2,400 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards BWB, DNV, EN 857 Type 2SC, MSHA Approved, USCG, Bend Radius 6 5/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 12.00
- Package Height: 1.00
- Package Weight: 4.50
Product info last updated on March 5, 2026 6:45pm UTC
Category: Hydraulic Cylinders and Equipment
