Wire Braided Hydraulic Hose Assembly MPN:EC415-24-24MP-24MP-48"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G412218014

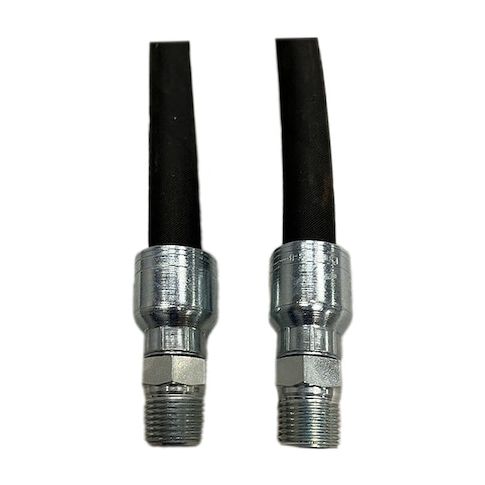

Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly from AEROQUIP is designed for heavy-duty applications in various industries. Its 4-layer wire braid construction provides exceptional strength and flexibility, making it suitable for use in high-pressure systems. The hose's temperature range of -40°F to 250°F and maximum working pressure of 3,000 psi ensure reliable performance in demanding environments. Ideal for applications such as construction, mining, and manufacturing, this hose assembly is MSHA approved and meets SAE 100R12 standards. Its compact design and durable construction make it a reliable choice for industries requiring high-performance hydraulic systems.
Top product features:
- Wire Braided Hydraulic Hose Assembly is designed with a spiral wire reinforcement for added strength and durability.
- The hose is constructed with four layers of wire braiding for improved resistance to abrasion and wear.
- The assembly is rated for a maximum working pressure of 3,000 psi, providing a safe operating margin with a 4:1 safety factor.
Top product applications:
- Heavy Equipment Repair and Maintenance
- Mobile Hydraulic Systems for Construction and Mining
- Industrial Power Transmission and Pneumatic Systems
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 1/2 in, Hose Outside Dia. 2 1/8 in, Hose Length 4 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 3,000 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 19 11/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 37 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 20.00
- Package Height: 2.00
- Package Weight: 14.00
Product info last updated on March 27, 2026 7:10pm UTC
Category: Hydraulic Cylinders and Equipment
