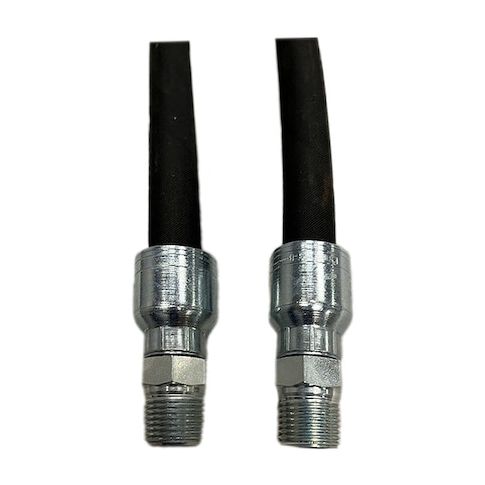

Hydraulic hose assy, SAE 100R4 MPN:WH004-12-12MPT-12MPT-144
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G412217833
Hydraulic hose assy, SAE 100R4
This SAE 100R4 hydraulic hose assembly from AEROQUIP is a reliable and durable option for various industrial applications. Designed for use in high-pressure systems, it features a wire-braided construction with synthetic rubber tube and cover, and a synthetic fiber reinforcement. The hose assembly is suitable for use in temperatures ranging from -40°F to 212°F and can withstand a maximum working pressure of 305 psi. Its compact bend radius and MSHA approval make it ideal for use in mining and other industries that require high-pressure hydraulic systems. It is also suitable for use in mobile equipment and machinery.
Top product features:
- Wire Braided Hydraulic Hose Assembly provides pressure resistance up to 305 psi at 70 F.
- The hose has a synthetic fiber reinforcement braid with a safety factor of 4:1.
- The hose operates within a temperature range of -40 to 212 F.
Top product applications:
- Agricultural Equipment
- Construction Equipment
- Industrial Manufacturing
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 3/16 in, Hose Length 12 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Synthetic Fiber, Hose Braid Layers 1, Hose Color Black, Max. Working Pressure @ 70 F 305 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards MSHA Approved, SAE 100R4, Bend Radius 1 9/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 20.00
- Package Height: 3.00
- Package Weight: 7.00
Product info last updated on May 2, 2026 10:05pm UTC
Category: Hydraulic Cylinders and Equipment
