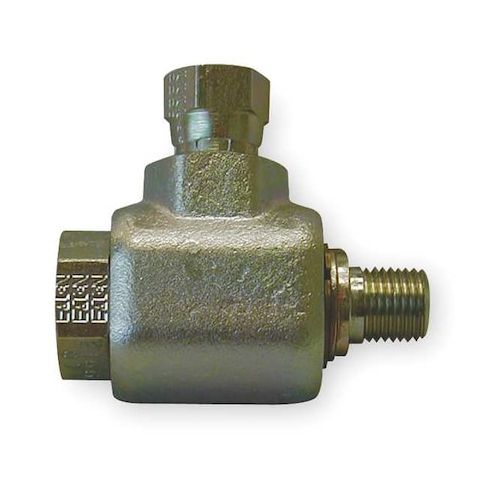

Swivel Joint, 1/2 In, Zinc Plated Steel MPN:FS65000-0808-01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2514583
Swivel Joint, 1/2 In, Zinc Plated Steel
The AEROQUIP Swivel Joint is a reliable and versatile component for fluid power systems, featuring a sturdy zinc-plated steel construction and a maximum operating pressure of 3,500 psi. Its compact design, measuring 2.88 inches in length, makes it ideal for use in tight spaces. The joint's 90-degree elbow shape enables smooth fluid flow and efficient system performance. Suitable for applications in extreme temperatures, ranging from -40 to 250 degrees Fahrenheit, this swivel joint ensures consistent operation in demanding environments. Its ANSI, ASTM, and MSS certifications ensure compliance with industry standards, making it a trusted choice for various industrial and commercial uses.
Top product features:
- Swivel joint allows for 90-degree change in direction of fluid flow
- Zinc plating provides corrosion resistance
- Buna-N seal provides a reliable seal up to 3500 psi
Top product applications:
- Fluid Power System
- Casing Center to End Length 1.62 in
- 90 Degrees Elbow
Swivel Joint, Fitting Material Steel, Fitting Material Finish Zinc-Plated, Maximum Operating Pressure 3,500 psi, Overall Length 2.88 in, Seal Material Buna-N, Maximum Operating Temperature 250 Degrees F, Minimum Operating Temperature -40 Degrees F, Standards ANSI B16.5, ASTM-A-351, MSS-SP-51 Class 150LB, Application Fluid Power System, Casing Center to End Length 1.62 in, Casing Connection Type NPSM, Casing Thread Gender Male, Casing Thread Size 1/2 In.-14, Fitting Shape 90 Degrees Elbow
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 1.50
- Package Weight: 1.04
Product info last updated on February 1, 2026 5:46am UTC
Category: Pipes, Valves and Fittings
