Wire Braided Hydraulic Hose Assembly MPN:EC215-04-4FR-4FR-120"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G112218192

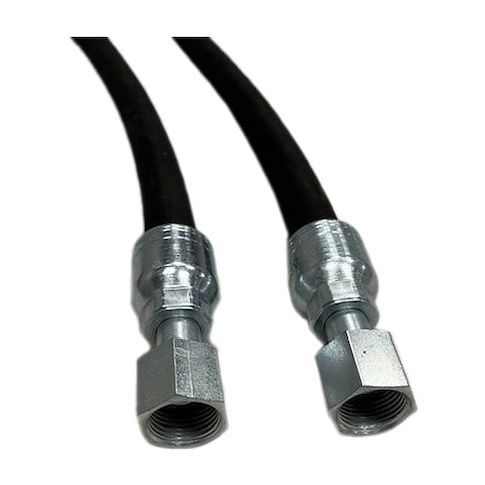

Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly from AEROQUIP is designed for heavy-duty applications in a variety of industries, including oil and gas, construction, and manufacturing. Its 2-layer wire braid construction provides exceptional durability and resistance to abrasion, while its synthetic rubber tube and cover ensure flexibility and resistance to chemicals and fuels. With a maximum working pressure of 5,800 psi and a temperature range of -40°F to 212°F, this hose assembly is ideal for use in high-pressure hydraulic systems, including those used in drilling, excavation, and material handling equipment. Its compact design and lightweight construction make it easy to install and maneuver.
Top product features:
- Wire braiding provides reinforcement against external pressure and wear.
- Two layers of wire braid reinforcement enhance the hose's durability and resistance to damage.
- The hose is designed with a bend radius of 2 inches, allowing for flexible installation in tight spaces.
Top product applications:
- Heavy Equipment Manufacturing
- Construction Equipment
- Oil and Gas Industry
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1/4 in, Hose Outside Dia. 9/16 in, Hose Length 10 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Wire, Hose Braid Layers 2, Hose Color Black, Max. Working Pressure @ 70 F 5,800 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards BWB, DNV, EN 857 Type 2SC, MSHA Approved, USCG, Bend Radius 2 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 12.00
- Package Height: 1.00
- Package Weight: 3.00
Product info last updated on February 2, 2026 8:46am UTC
Category: Hydraulic Cylinders and Equipment
