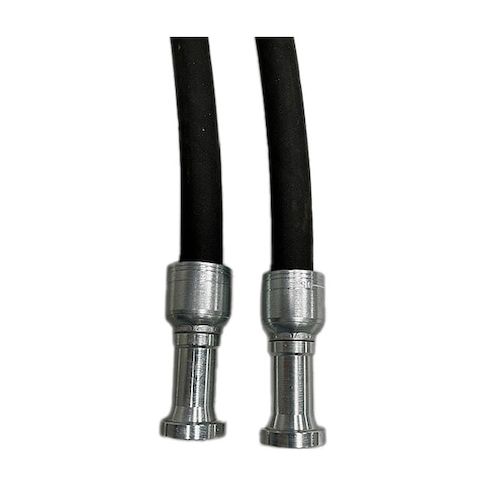

Wire Braided Hydraulic Hose Assembly MPN:EC415-24-24FL-24FL-48
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G012217981
Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly is a high-performance solution for demanding applications, featuring a durable synthetic rubber tube and cover with a spiral wire reinforcement for added strength and flexibility. With a maximum working pressure of 3,000 psi and a temperature range of -40°F to 250°F, it can withstand extreme conditions. Suitable for use in heavy industry, construction, and mining, this hose assembly is MSHA approved and meets SAE 100R12 standards. Its compact design and 4:1 safety factor make it an ideal choice for applications where reliability and safety are paramount.
Top product features:
- Wire braided construction provides added strength and durability to the hose.
- The hose has a 4-layer wire braid reinforcement for improved resistance to pressure and abrasion.
- The hose is designed to operate at a maximum working pressure of 3,000 psi.
Top product applications:
- Construction Equipment
- Heavy Machinery
- Agricultural Equipment
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 1/2 in, Hose Outside Dia. 2 1/8 in, Hose Length 4 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 3,000 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 19 11/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 20.00
- Package Height: 2.00
- Package Weight: 14.00
Product info last updated on January 31, 2026 12:23am UTC
Category: Hydraulic Cylinders and Equipment
