Wire Braided Hydraulic Hose Assembly MPN:EC415-16FH-16FH-144
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G012217721

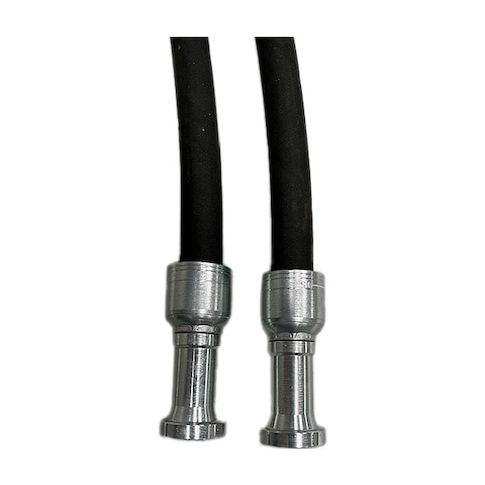

Wire Braided Hydraulic Hose Assembly
This wire braided hydraulic hose assembly from AEROQUIP is designed for high-pressure applications, featuring a maximum working pressure of 4,050 psi at 70°F. The hose's 4-layer wire braid reinforcement provides durability and resistance to abrasion, while its synthetic rubber tube and cover ensure flexibility and resistance to chemicals. Suitable for use in a variety of industries, including mining and construction, this hose assembly is MSHA approved and meets SAE 100R12 standards. Its temperature range of -40°F to 250°F makes it ideal for use in extreme environments, and its compact design allows for flexibility and maneuverability in tight spaces.
Top product features:
- Wire braided construction provides high pressure resistance and durability
- Four-layer braid design enhances flexibility and resistance to kinking
- Operating temperature range of -40 to 250 degrees F allows for use in extreme environments
Top product applications:
- Heavy Equipment Manufacturing
- Construction and Mining Equipment
- Agricultural Machinery
Wire Braided Hydraulic Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 1/2 in, Hose Length 12 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Wire, Hose Braid Layers 4, Hose Color Black, Max. Working Pressure @ 70 F 4,050 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 250 Degrees F, Standards MSHA Approved, SAE 100R12, Bend Radius 11 13/16 in, Hose Configuration Coupled Assembly
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 7.00
- Package Height: 24.00
- Package Weight: 14.50
Product info last updated on February 7, 2026 4:53am UTC
Category: Hydraulic Cylinders and Equipment
