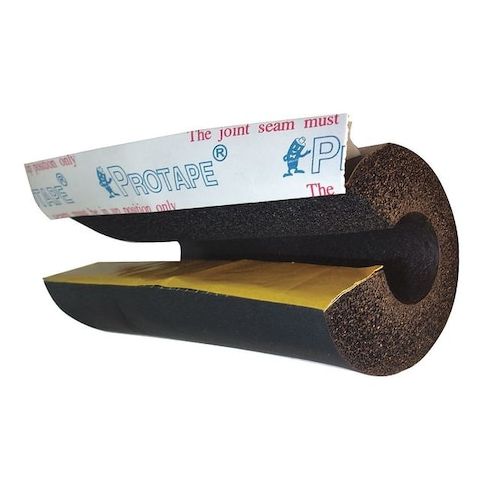

Self-Seal Insulation, Rubber, 2-5/8" x 1" Wall MPN:771-AC25810SSPT
Self-Seal Insulation, Rubber, 2-5/8" x 1" Wall
AEROCEL's Self-Seal Insulation is a flexible, high-performance solution for insulating copper tubes in extreme temperatures. Its closed-cell EPDM material provides excellent thermal insulation, with an R-value of 5.7, and is resistant to temperature fluctuations from -297°F to 257°F. The self-seal design simplifies installation, eliminating the need for additional adhesives or fasteners. Suitable for use in plenum-rated applications, this insulation is ideal for commercial and industrial settings, including HVAC systems, data centers, and laboratories. Its flexibility and high-temperature resistance make it a reliable choice for a wide range of applications, including high-performance computing and cryogenic systems.
Top product features:
- Self-Seal Insulation is designed with an adhesive and flap for easy installation.
- The insulation material is EPDM, which provides a closed-cell structure for consistent thermal performance.
- The product is plenum rated, indicating that it meets safety standards for use in air-handling spaces.
Top product applications:
- HVAC Duct Insulation
- Industrial Pipe Insulation
- Cryogenic Insulation
Self-Seal Insulation, Insulation Material EPDM, Installation Style Slit with Adhesive and Flap, Inside Diameter 2 1/2 in, Wall Thickness 1 in, Overall Length 6 ft, Minimum Operating Temperature -297 Degrees F, Maximum Operating Temperature 257 Degrees F, Facing Material Unfaced, Color Black, R Value 5.7, Form Tube, For Copper Tube Size 2 5/8 in, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Closed, Plenum Rating Plenum Rated, Flexibility Flexible
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 76.50
- Package Width: 16.00
- Package Height: 11.50
- Package Weight: 4.00
Product info last updated on April 2, 2026 11:48pm UTC
Category: Pipes, Valves and Fittings
