Power Quality Analyzer 8336, 3-Phase, 4 Current/5 Voltage Channels, TRMS, Data Logging MPN:8336 W/4 193-24-BK

The AEMC Instruments 8336 W/4 193-24-BK is a three-phase power quality analyzer designed for comprehensive AC and DC electrical system testing, troubleshooting, and monitoring. Equipped with four current channels and five voltage channels, it provides TRMS measurements, data logging, peak capture, and harmonic analysis through the 50th order for detailed power quality evaluation. With a 200 kHz sampling rate, 32 GB of storage, and a color TFT display, this analyzer is well-suited for field and facility applications requiring accurate measurement of current, voltage, power, frequency, and transient events.

Key Features:

• - Three-phase power quality analyzer with 4 current channels and 5 voltage channels for detailed multi-parameter electrical analysis.
• - Measures AC and DC electrical parameters with TRMS response for accurate AC readings.
• - Current measurement capability up to 10,000 A AC and 1,000 A DC.
• - Voltage measurement capability up to 1,000 V AC and 1,000 V DC.
• - Measures power up to 9,999 kW and 10 MVA for high-capacity system analysis.
• - Performs harmonic analysis and capture through the 50th order to help identify power quality issues.
• - 200 kHz sampling rate and 65 uS minimum transient duration for capturing fast events.
• - Voltage accuracy of +/-0.5% for dependable measurement performance.
• - Built-in data logging with 32 GB of storage for extended recording and analysis.
• - Color TFT display with 320 x 240 resolution for clear on-site viewing.
• - Power factor measurement range from 0 to 1 and frequency range from 40 to 69 Hz.
• - IP53-rated housing helps provide protection in demanding work environments.

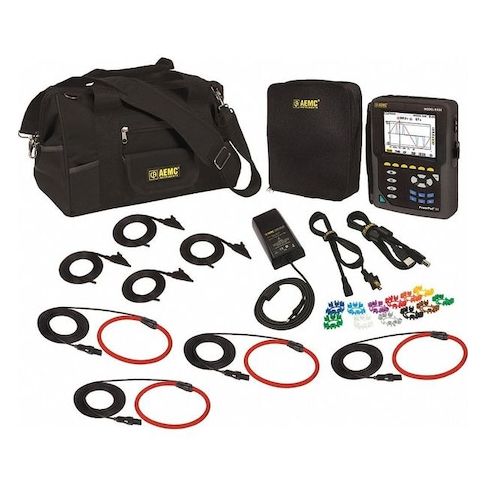

• - Includes carrying bag, power adapter with power cord, USB cable, and voltage leads with alligator clips.
