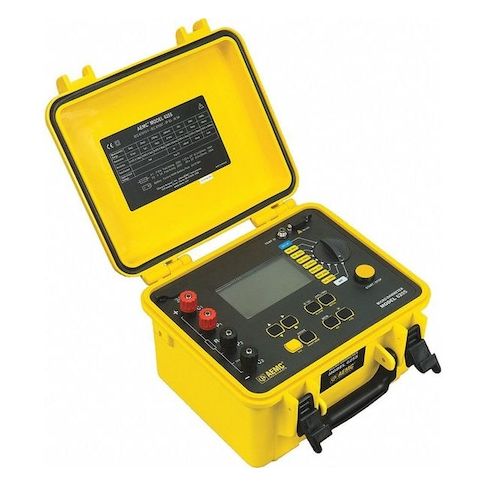

Micro Ohm Meter, 0.1u Ohms Resolution MPN:6255
The AEMC Instruments 6255 is a portable, battery-powered micro ohmmeter designed for precise low-resistance testing in field and maintenance applications. Its high-resolution measurements down to 0.1 microohm and adjustable test current from 0.1 A to 10 A make it ideal for professionals who need accurate, portable resistance measurement and documentation capabilities. The instrument is well-suited for testing electrical systems, motors, and generators, as well as for troubleshooting and maintenance in industries such as aerospace, automotive, and industrial manufacturing. Its onboard storage and RS-232 communication enable efficient data transfer and analysis.
Top product features:
- Measures resistance from 0.1 microohm to 2500 ohms.
- Has a high resolution down to 0.1 microohm for precise measurement results.
- Has adjustable output current range from 0.1 A to 10 A.
Top product applications:
- Field Testing
- Maintenance Applications
- Low-Resistance Testing in Manufacturing
The AEMC Instruments 6255 is a battery-powered micro ohmmeter designed for precise low-resistance testing in field and maintenance applications. It offers high-resolution measurements down to 0.1 microohm, a wide resistance range from 0.1 microohm to 2500 ohms, and adjustable test current from 0.1 A to 10 A. With a clear 2500-count LCD display, onboard storage for up to 1500 test results, and RS-232 communication for data transfer, this instrument is well suited for professionals who need accurate, portable resistance measurement and documentation capabilities.
Key Features:
- - Battery-powered micro ohmmeter for portable low-resistance testing.
- - Measures resistance from 0.1 microohm to 2500 ohms.
- - High resolution down to 0.1 microohm for precise measurement results.
- - Minimum resistance measurement of 5 microohms.
- - Maximum resistance measurement of 2.5 kiloohms.
- - Adjustable output current range from 0.1 A to 10 A.
- - Accuracy rated at +/-0.05% for dependable test performance.
- - 2500-count LCD display for clear reading visibility.
- - Internal memory stores up to 1500 test results.
- - RS-232 communication interface for transferring stored data.
- - Safety rated to IEC/EN 61010-1 CAT III 50V Pol 2.
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 15.00
- Package Height: 13.00
- Package Weight: 27.00
