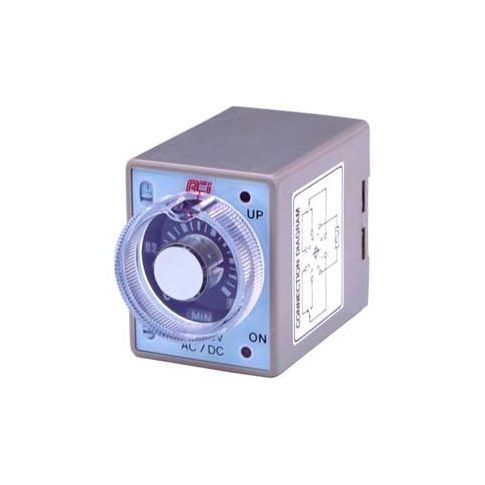

Advance Controls 104222 Multi-Range/Voltage/On-Delay Min./Hr. Timer 8 pin DPDT (min-hrs) 104222
Advance Controls 104222 Multi-Range/Voltage/On-Delay Min./Hr. Timer 8 pin DPDT (min-hrs)
The Advance Controls 104222 Multi-Range/Voltage/On-Delay Min./Hr. Timer is a versatile and reliable timing solution for a wide range of applications. Its unique design allows for two different time spans and four different timing ranges within each, ensuring accurate timing in various scenarios. The timer's wide operating voltage range (24V AC/DC to 240V AC/DC) eliminates the need for wiring changes or dip switch settings, making it easy to integrate into existing systems. Suitable for use in industrial, commercial, and residential settings, this timer is ideal for applications such as lighting control, security systems, and automation.
Top product features:
- Multi-range capability allows the timer to be set for two different time spans with four different timing ranges within each time span.
- The timer's range is automatically set when the time span switch and multiplier switch are adjusted, eliminating confusion about the timing range.
- Timing begins once power is applied to the timer coil, and the relay contacts transfer and remain transferred until the timer is reset.
Top product applications:
- Industrial Automation
- Remote control of machinery and equipment
- Machine start-up and shutdown sequencing
The aci 86 series on delay timers offer two (2) different time spans a choice of four (4) different timing ranges within each time span and a wide range of operating voltages. Multi range by simply setting the time span switch and multiplier switch located on the timer faceplate to the proper position the timer's range is automatically set. The faceplate dial automatically changes to indicate the timer's time range. Thus the correct time range is always shown on the faceplate eliminating any confusion concerning the timer's timing range. Wide range of input voltages a wide range of input voltages are allowed (24 vac / dc through 240 vac / dc 50 / 60 hz) without wiring changes or dip switch settings. Timing begins once power is applied to the timer coil. When the time delay setting is reached the relay contacts transfer and remain transferred until the timer is reset. The timer is reset by removing power to the coil.
Additional Information
- UNSPSC: 39121523
- Brand: Advance Controls Inc.
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: FL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.30
Product info last updated on May 19, 2025 2:59am UTC
Category: Motor Controls
