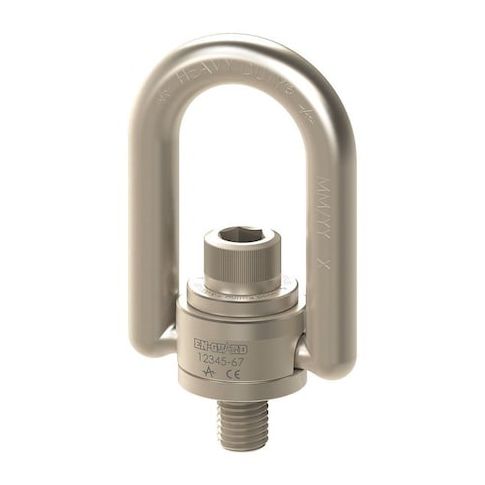

Hoist Ring, 20-2-1/2in, 135 ft.-lb, ENHDHRM MPN:EN34714
Hoist Ring, 20-2-1/2in, 135 ft.-lb, ENHDHRM
The ADB Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a working load limit of 4,850 lb and a pivot/swivel angle of 180/360 degrees, this ring provides flexibility and stability in lifting and pulling operations. Constructed from alloy steel and finished in nickel, it offers long-lasting durability and corrosion resistance. Suitable for use in various industries, including construction, manufacturing, and logistics, the hoist ring is ideal for applications requiring secure and controlled movement of heavy loads. Its compact design and screw-on mount make it easy to install and use.
Top product features:
- Pivot angle of 180 degrees
- Swivel angle of 360 degrees
- Working load limit of 4,850 lb
Top product applications:
- Overhead crane systems for heavy-duty lifting operations
- Material handling equipment for warehouses and factories
- Heavy equipment rigging for construction and manufacturing sites
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 4,850 lb, Thread Size M20-2.50, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 2 1/4 in, Bail Inside Width 1 7/8 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 3 1/2 in, Hardware Included Removable Bolt, Minimum Installation Torque 99.6 ft-lb, Finish Nickel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 2.30
- Package Weight: 2.49
Product info last updated on February 2, 2026 3:02pm UTC
Category: Lifting, Pulling and Positioning
