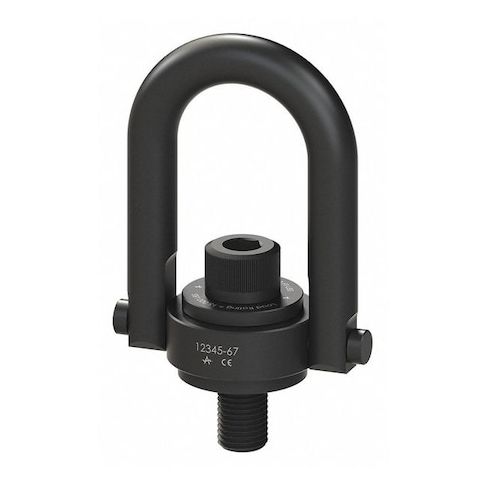

Hoist Ring, 3/4-10in, 100 ft.-lb, 1 lb. MPN:23103
Hoist Ring, 3/4-10in, 100 ft.-lb, 1 lb.
This heavy-duty hoist ring is designed for lifting and pulling applications, offering a working load limit of 7,000 pounds and a durable alloy steel construction. The pivot and swivel movement allows for 180-degree and 360-degree rotation, respectively, providing flexibility in a variety of settings. Suitable for use in construction, industrial, and manufacturing environments, this hoist ring can be mounted with a removable bolt and requires a minimum installation torque of 100 ft-lb. Its compact design and versatility make it an ideal choice for applications where heavy loads need to be lifted and maneuvered with precision and control.
Top product features:
- Pivot movement allows for 180-degree rotation
- Swivel movement allows for 360-degree rotation
- Removable bolt allows for easy installation and removal
Top product applications:
- Cranes and hoists for heavy lifting applications
- Pulleys and winches for construction and industrial use
- Marine and offshore equipment for lifting and hauling heavy loads
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 7,000 lb, Thread Size 3/4 In.-10, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/2 in, Bail Inside Length 3 in, Bail Inside Width 2 3/8 in, Bail Thickness 1 in, Overall Length 5 1/8 in, Overall Width 4 3/4 in, Hardware Included Removable Bolt, Minimum Installation Torque 100 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.50
- Package Height: 3.00
- Package Weight: 6.20
Product info last updated on February 2, 2026 9:26am UTC
Category: Lifting, Pulling and Positioning
