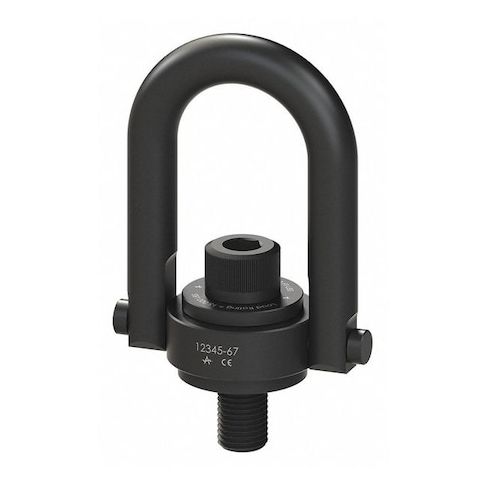

Hoist Ring, Bolt-On, 48-5in, 1085.5 ft.-lb. MPN:24054
Hoist Ring, Bolt-On, 48-5in, 1085.5 ft.-lb.
The ADB Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a working load limit of 29,760 pounds and a pivot angle of 180 degrees, this alloy steel ring provides reliable and versatile lifting and pulling capabilities. Its swivel angle of 360 degrees and removable bolt make it easy to maneuver and install. Suitable for use in industries such as construction, manufacturing, and shipping, this hoist ring is ideal for lifting and moving heavy equipment, machinery, and materials. Its durable design and high load capacity make it a valuable asset for any heavy-duty lifting operation.
Top product features:
- Pivot movement allows for 180 degrees of rotation.
- Swivel movement allows for 360 degrees of rotation.
- The removable bolt allows for easy installation and removal.
Top product applications:
- Heavy Construction Equipment
- Rigging and Lifting Operations
- Industrial Material Handling
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 29,760 lb, Thread Size M48-5.00, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 3 1/8 in, Bail Inside Length 6 in, Bail Inside Width 4 1/4 in, Bail Thickness 1 3/4 in, Overall Length 8 1/2 in, Overall Width 8 in, Hardware Included Removable Bolt, Minimum Installation Torque 800.6 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 10.00
- Package Height: 5.50
- Package Weight: 33.43
Product info last updated on January 18, 2026 9:51pm UTC
Category: Lifting, Pulling and Positioning
