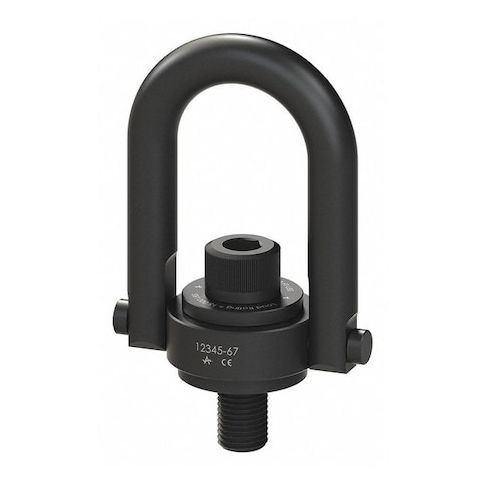

Hoist Ring, Bolt-On, 16-2in, 80 ft.-lb. MPN:24016
Hoist Ring, Bolt-On, 16-2in, 80 ft.-lb.
This high-strength Hoist Ring is designed for heavy-duty lifting and pulling applications, featuring a 4,185 lb working load limit and a 180-degree pivot angle with 360-degree swivel capability. Constructed from durable alloy steel, it provides reliable performance and long-lasting durability. The bolt-on design makes installation easy, with a removable bolt and minimum installation torque of 59 ft-lb. Suitable for a range of industries, including construction, manufacturing, and logistics, this hoist ring is ideal for applications where heavy loads need to be lifted, pulled, or secured. Its versatility and strength make it a valuable addition to any equipment fleet.
Top product features:
- Pivot movement allows for 180 degrees of rotation.
- Swivel movement allows for 360 degrees of rotation.
- Removable bolt allows for easy installation and removal.
Top product applications:
- Heavy machinery assembly and disassembly
- Construction equipment lifting and rigging
- Industrial equipment installation and removal
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 4,185 lb, Thread Size M16-2.00, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 2 1/8 in, Bail Inside Width 1 1/2 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 4 in, Hardware Included Removable Bolt, Minimum Installation Torque 59 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.20
- Package Weight: 2.20
Product info last updated on February 2, 2026 8:47pm UTC
Category: Lifting, Pulling and Positioning
