Hoist Ring, 5/8"-11 Thread, 5, 000 lb MPN:36640

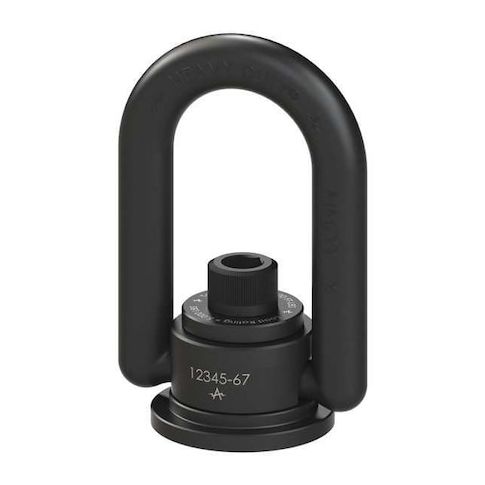

Hoist Ring, 5/8"-11 Thread, 5, 000 lb
The ADB Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a 5,000 lb working load limit and 360-degree swivel angle, this alloy steel ring provides flexibility and stability for lifting and pulling operations. Its pivot angle of 180 degrees ensures secure attachment and smooth movement. The ring's removable bolt and black oxide finish add to its durability and corrosion resistance. Ideal for use in construction, manufacturing, and industrial settings, the Hoist Ring is a reliable choice for heavy-duty lifting and material handling tasks. Its compact design and easy installation make it a convenient solution for a variety of applications.
Top product features:
- Pivot Angle 180 Degrees allows for wide turning radius.
- Swivel Angle 360 Degrees enables continuous rotation.
- Working Load Limit 5,000 lb provides a high lifting capacity.
Top product applications:
- Construction Hoisting
- Industrial Machinery Installation
- Heavy-Duty Lifting Equipment
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Weld-On, Working Load Limit 5,000 lb, Thread Size 5/8 In.-11, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 5/8 in, Bail Inside Length 2 1/2 in, Bail Inside Width 2 in, Bail Thickness 3/4 in, Overall Length 5 1/2 in, Overall Width 3 1/2 in, Hardware Included Removable Bolt, Minimum Installation Torque 100 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 2.50
- Package Weight: 2.59
Product info last updated on January 19, 2026 9:41pm UTC
Category: Lifting, Pulling and Positioning
