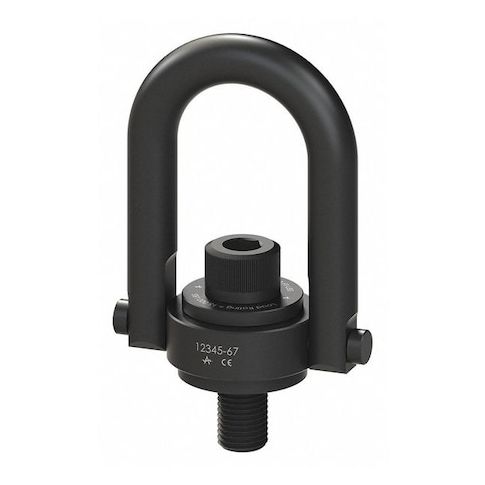

Hoist Ring, 1-1/4-7in, 470 ft.-lb, SEHR MPN:23401
Hoist Ring, 1-1/4-7in, 470 ft.-lb, SEHR
Elevate your lifting and pulling operations with the ADB Hoist Ring, a heavy-duty alloy steel ring designed for maximum performance and reliability. With a working load limit of 15,000 lb and a pivoting angle of 180 degrees, this ring provides a wide range of motion for smooth and efficient lifting and pulling. Its swiveling capability allows for 360-degree rotation, making it ideal for applications where flexibility is key. Suitable for use in construction, manufacturing, and heavy industry, this hoist ring is a valuable asset for any operation that requires reliable and durable lifting equipment.
Top product features:
- Movement Type Pivot, Swivel allows for 360-degree swiveling and 180-degree pivoting for improved maneuverability.
- Working Load Limit 15,000 lb enables safe and reliable lifting of heavy loads.
- Pivot Angle 180 Degrees and Swivel Angle 360 Degrees provide a wide range of motion for flexible and precise positioning.
Top product applications:
- Overhead lifting of heavy equipment
- Rigging and lifting operations in construction and industrial settings
- Heavy-duty material handling and moving of large loads
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 15,000 lb, Thread Size 1 1/4 In.-7, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 7/8 in, Bail Inside Length 4 1/8 in, Bail Inside Width 3 1/4 in, Bail Thickness 1 1/4 in, Overall Length 6 1/2 in, Overall Width 1 1/4 in, Hardware Included Removable Bolt, Minimum Installation Torque 470 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 7.00
- Package Height: 4.50
- Package Weight: 12.85
Product info last updated on February 2, 2026 10:57pm UTC
Category: Lifting, Pulling and Positioning
