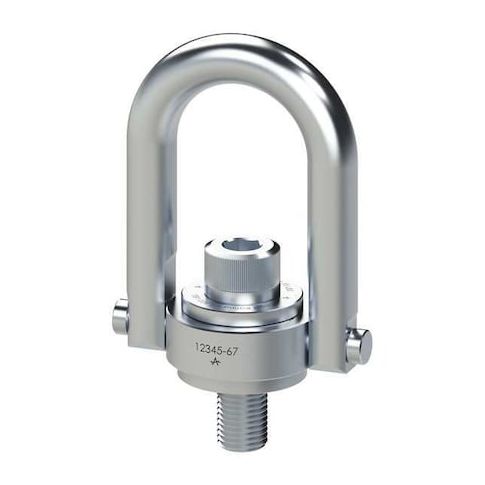

Hoist Ring, Bolt-On, 16-2in, 40.0 ft.-lb. MPN:29816
Hoist Ring, Bolt-On, 16-2in, 40.0 ft.-lb.
This heavy-duty Hoist Ring from ADB is designed for lifting and pulling applications, offering a 2,090 lb working load limit and a 180-degree pivot angle with 360-degree swivel capabilities. Constructed from durable stainless steel, it features a screw-on mount and comes with a removable bolt for easy installation. Suitable for use in a variety of industries, including manufacturing, construction, and logistics, this hoist ring provides flexibility and versatility in heavy-duty lifting and pulling operations. Its compact design and adjustable swivel angle make it an ideal solution for navigating tight spaces and changing work environments.
Top product features:
- Pivot movement allows for 180 degrees of rotation
- Swivel movement allows for 360 degrees of rotation
- Removable bolt allows for easy installation and removal
Top product applications:
- Pallet Jack or Forklift Attachments
- Construction Site Material Handling
- Heavy Duty Garage or Warehouse Equipment Installation
Hoist Ring, Movement Type Pivot, Swivel, Material Stainless Steel, Mount Type Screw-On, Working Load Limit 2,090 lb, Thread Size M16-2.00, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 2 1/8 in, Bail Inside Width 1 1/2 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 4 in, Hardware Included Removable Bolt, Minimum Installation Torque 29.5 ft-lb, Finish Plain
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.50
- Package Weight: 2.22
Product info last updated on March 25, 2026 1:04pm UTC
Category: Lifting, Pulling and Positioning
