Hoist Ring, Bolt-On, 24-3in, 155.5 ft.-lb. MPN:29824
Hoist Ring, Bolt-On, 24-3in, 155.5 ft.-lb.

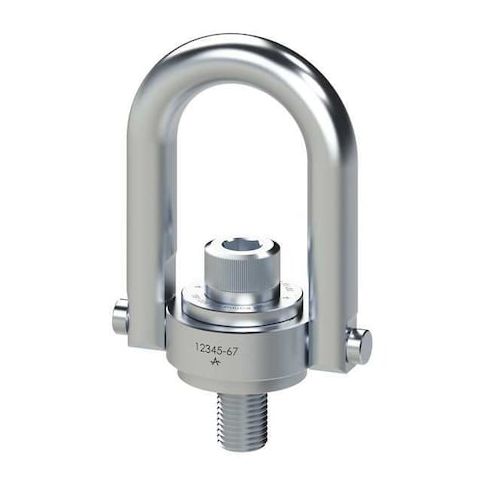

The ADB Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a working load limit of 4,625 pounds and a pivot angle of 180 degrees, this ring provides secure and controlled movement in lifting and pulling operations. Its swivel angle of 360 degrees allows for effortless rotation and maneuverability. Constructed from stainless steel, the ring is resistant to corrosion and suitable for use in harsh environments. Ideal for industrial, construction, and marine settings, this hoist ring is a reliable choice for applications that require precision and durability.
Top product features:
- Pivot movement allows for 180-degree rotation.
- Swivel movement allows for 360-degree rotation.
- Removable bolt allows for easy installation and removal.
Top product applications:
- Lifting heavy machinery in a factory setting
- Pulling and lifting heavy loads in a construction or industrial environment
- Securing and lifting large equipment in a warehouse or storage facility
Hoist Ring, Movement Type Pivot, Swivel, Material Stainless Steel, Mount Type Screw-On, Working Load Limit 4,625 lb, Thread Size M24-3.00, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 3/8 in, Bail Inside Length 2 7/8 in, Bail Inside Width 2 1/4 in, Bail Thickness 1 in, Overall Length 5 1/8 in, Overall Width 4 in, Hardware Included Removable Bolt, Minimum Installation Torque 114.7 ft-lb, Finish Plain
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 6.50
- Package Height: 3.70
- Package Weight: 6.57
Product info last updated on February 24, 2026 7:25am UTC
Category: Lifting, Pulling and Positioning
