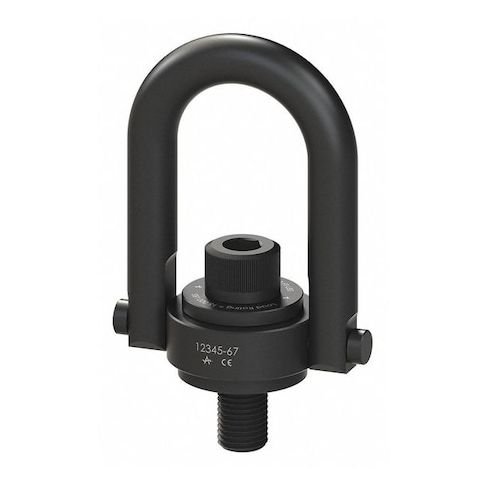

Hoist Ring, Bolt-On, 1-8in, 230 ft.-lb, SEHR MPN:23106
Hoist Ring, Bolt-On, 1-8in, 230 ft.-lb, SEHR
The ADB Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a working load limit of 10,000 lb and a pivot angle of 180 degrees, this ring provides flexibility and reliability for lifting and pulling operations. Its 360-degree swivel capability allows for smooth movement and reduced wear on equipment. The ring's alloy steel construction and black oxide finish ensure durability and resistance to corrosion. Ideal for use in industries such as construction, manufacturing, and oil and gas, this hoist ring is a valuable addition to any heavy-duty lifting operation.
Top product features:
- Pivot movement allows for 180 degrees of rotation.
- Swivel design enables 360 degrees of rotation.
- Removable bolt allows for easy installation and removal.
Top product applications:
- Construction hoisting and rigging
- Heavy equipment lifting and moving
- Industrial machinery installation and removal
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 10,000 lb, Thread Size 1 In.-8, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/2 in, Bail Inside Length 2 3/4 in, Bail Inside Width 2 3/8 in, Bail Thickness 1 in, Overall Length 5 1/8 in, Overall Width 6 3/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 230 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 6.00
- Package Height: 3.00
- Package Weight: 6.59
Product info last updated on March 1, 2026 7:38am UTC
Category: Lifting, Pulling and Positioning
